Trumpf laser cutting TCL3030-TLF3800

Available in MACH-TRADE

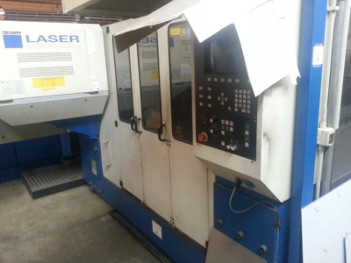

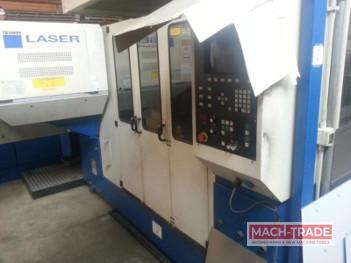

n. 1 used LASER CUTTING TRUMPF mod. TCL3030 TLF 3800 with LIFTMASTER, year 1998

TECHNICAL DATA

• X-axis movement: 3000 mm
• Y-axis movement: 1500 mm
• Z-axis movement: 115 mm
• Max X-axis speed: M / min 60
• Max y-axis speed: M / min 60
• Max simultaneous speed x-y: M / min 84
• Numerical control: Bosch Trumagraph cc 220s
• Laser power: 3800 Watt
• Maximum cutting thickness: Fe Mm 20
• Max working weight: 710 kg
• Minimum programmable stroke precision: Mm 0.01
• Position deviation: Mm +/- 0.10
• Average dispersion band: Mm +/- 0.03
• CO2 laser gas consumption: L / h 1
• N2 laser gas consumption: L / h 5
• He laser gas consumption: L / h 14
• Approximate electric consumption: Kw 33-53
• Weight: 11500 kg
• Color: White blue
• Approximate dimensions: Mm 9800 x 4600 x 2000 h

STANDARD CONFIGURATION

• resonator year 2008
• automatic loading-unloading system: LiftMaster
• drive: 3-phase servo motors
• illuminazione zona lavoro
• cambio pallet automatico
• convogliatore sfridi
• sistema di aspirazione fumi
• testa di taglio da 5″ con lente
• testa di taglio da 7,5″ con lente
• lubrificazione oil spray
• sprint las: increase processing speed through optimization of processing sequences
• contour las for production small contours
• auto las

Contact us to receive all the information about this machine:

• use the contact form
• call us
• write us an email
