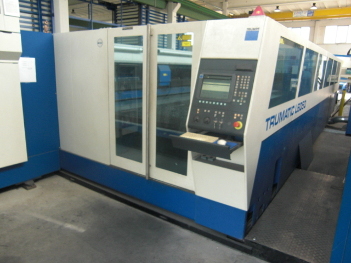

Laser cutting machine Trumpf TC-L6050

http://www.youtube.com/watch?v=Ndf-Jh2EVqs

Available in MACH-TRADE

n. 1 used LASER CUTTING TRUMPF mod. TC-L6050 TLF5000 year 2005

TECHNICAL DATA

• X-axis movement: 6000 mm
• Y-axis movement: 2000 mm
• Z-axis movement: 115 mm
• Max X-axis speed: M / min 200
• Max Y-axis speed: M / min 200
• Max simultaneous speed x-y: M / min 300
• CNC: Siemens sinumerik 840 d
• Laser power: 5000 Watts
• Max. Sheet thick./St: 25 mm
• Max. Sheet thick./VA: 20 mm
• Max. Sheet thick./AI: 12 mm
• Max working weight: 900 Kg
• Precisione min. corsa programmabile: Mm 0,001
• Position deviation: Mm +/- 0.10
• Average dispersion band: Mm +/- 0.03
• CO2 laser gas consumption: L / h 1
• Laser gas consumption N2: L / h 6
• Consumo gas laser he L/h 13
• Approximate electric consumption: Kw 33-72
• Peso: Kg 12000
• Color: White blue
• Dimensioni approx: 13000 x 5400 x 2400 mm

STANDARD CONFIGURATION

• Laser unit: CO2 Laser TLF 5000 Watt, radio-frequency excited, chiller, logbook function
• drive: 3-phase servo motors
• working area lighting
• 5″cutting head with lens
• 7.5″ cutting head with lens
• oil spray lubrication
• cutting gas pressure settings programming
• power cycle programming
• plasma pms sensor: process safety in high thickness steel cutting
• sprint las: increased speed processing by optimization of processing sequences
• HI-LAS high pressure cutting
• autolas-plus: sistema di raffreddamento degli specchi con valvola proporzionale che consente il raffreddamento in qualsiasi punto della macchina. il raffreddamento degli specchi va ad influenzare la focale
• contour las for manufacturing small contours
• safety cabin
• fume extraction
• multi-beam safety barriers
• Shopfloor programming ToPs 100 lite
• control: open PC based control system, easy to use, on line help, diagnostic functions, 3.5″ floppy disk drive, bnc-/ rj45 connection
