Trumpf laser cutting TC-L3040

Available in MACH-TRADE

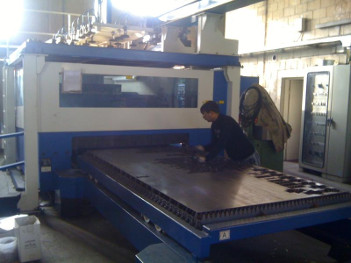

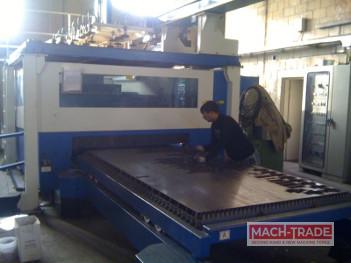

n. 1 used LASER CUTTING TRUMPF mod. TC-L3040 TLF4000, year 2006

Technical data:

• Xp axis Mm. 300
• Additional head from 3.75
• Axis Y Movement: 3000 Mm
• Axis Y movement: 1500 mm
• Axis Z Movement: Mm 115
• Max speed X axis: M / Min 120
• Max speed Y axis: M / Min 120
• Max speed Simultaneous X-Y: M / Min 170
• Numerical Control: Siemens Sinumerik 840D
• Laser power: 4000 Watt
• Maximum cutting thickness: Fe 20 mm
• maximum processing weight 710 kg
• Programmable minimum stroke precision Mm 0.01
• Position deviation: mm +/- 0.10
• Average dispersion band: +/- 0.03 mm
• Electric consumption Approximate: 65 Kw
• Weight: 12000 kg
• Color: White Blue
• Approximate dimensions: Mm 9300 X 4600 X 2000 H
