TruLaser 5030 (L68) Watt 8000, year 2015

Available in MACH-TRADE

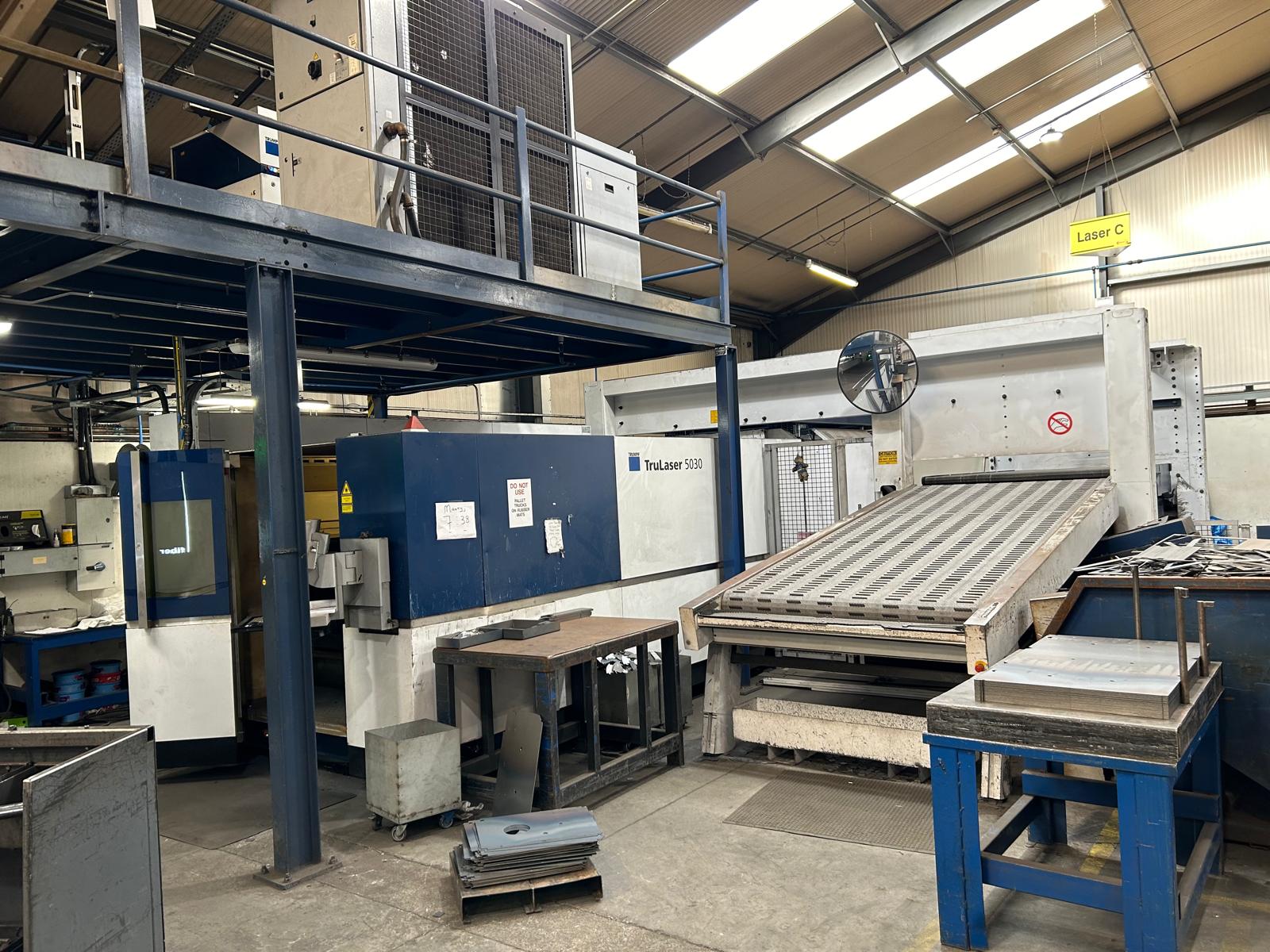

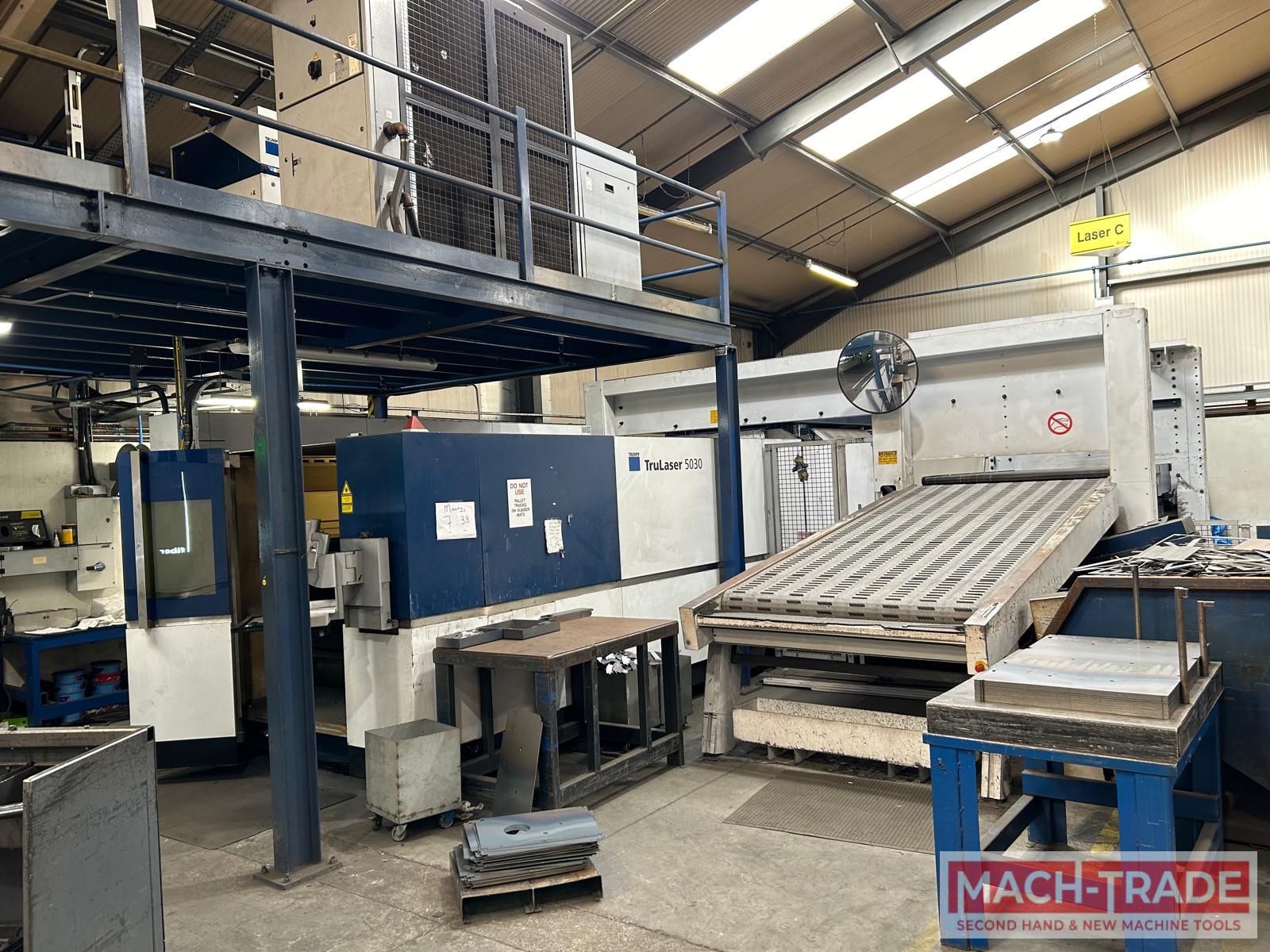

N° 1 Laser  cutting machine Trumpf TruLaser 5030 (L68) Watt 8000, year 2015 with automatic loading unloading system Lift-Master Compact
        Operating Hours about 51457/Laser on 36792

Technical data:

• CONFIGURATION

  Standard configuration

  Machine
  ⦁ Closed machine frame
  ⦁ Integrated cabinet
  ⦁ Automatic pallet changer lengthwise installation
  ⦁ Torque drive in combination with direct linear drives
  ⦁ Enclosed beam delivery via fiber optic cable
  ⦁ Chiller for machine cooling (water-air)
  ⦁ Integrated eletrical cabinets with inside light
  ⦁ Power supply TruDisk via the machine
  ⦁ Longitudinal conveyor
  ⦁ Working area lighting
  ⦁ Positioning laser diode
  ⦁ Spray device
  ⦁ PierceLine
  ⦁ FocusLine
  ⦁ NitroLine
  ⦁ PlasmaLine
  ⦁ Automatic nozzle cleaning

  TRUMPF Laser
  ⦁ Solid state laser TruDisk 8001 with 1 LLK output
  ⦁ Fiber optic cable according standard layout
  ⦁ Laser chiller unit (water-air)
  ⦁ Stimulation via pump diodes
  ⦁ Laser power control

  Cutting head
  ⦁ Universal cutting head with complete adaptive lense system
  ⦁ One cutting head strategy
  ⦁ Protection glass to avoid lense contamination
  ⦁ Protection glass monitoring
  ⦁ ControlLine: Height regulation and sheet edge detection

  Control
  ⦁ SINUMERIK 840D SL
  ⦁ 19” Touch panel
  ⦁ Easy shop floor programming
  ⦁ Fast reproduction
  ⦁ Technology data is integrated
  ⦁ Copper cutting package (includes cutting data N2, O2)
  ⦁ Brass cutting package (includes cutting data N2)
  ⦁ Automatic shutdown
  ⦁ Programmable cutting gas pressure
  ⦁ ContourLine
  ⦁ Microweld
  ⦁ FastLine
  ⦁ FlyLine
  ⦁ AdjustLine
  ⦁ Teleservice via internet

  Data transmission
  ⦁ RJ 45 network connection
  ⦁ USB interface

   Safety
  ⦁ CE Label
  ⦁ Light barriers
  ⦁ Multi-chamber extraction system
  ⦁ Compact dust extractor
  ⦁ Machine enclosure with certificated window (right door)
  ⦁ Electrical curl up roof

  Additional equipment

  ⦁ Air cutting (includes cutting data N2, Argon; further cutting gas connection)
  ⦁ Nozzle changer
  ⦁ Wide conveyor belt with tilt container (right hand from the machine)
  ⦁ Cleaning brush for slats (Requirement: Synchronous loader)

   Automation

   LiftMaster Compact
  ⦁ Basic system LiftMaster Compact inkl. movable unloading rake
  (tine spacing 67 mm, exchangeable prongs), peeling device, sheet thickness measuring, synchronous loader,
  loading station for stacking height up to 90 mm / 3 t, one pallet for finished parts and extended pallet removal unit
  ⦁ Separation of thin sheets for Synchronous loader (s = 0.8 – 2.0 mm)
  ⦁ Loading station for extended stacking height (up to 300 mm / 3 t)
  ⦁ Storage Interface

   PartMaster
  ⦁ PartMaster incl. scrap container below parts slide and set-down position of transport belt on the LiftMaster Compact
