Trumpf laser cutting TCL4030-TLF4000

Available in MACH-TRADE

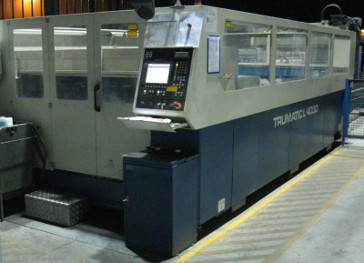

n. 1 used LASER CUTTING TRUMPF mod. TCL4030 TLF4000 with LIFTMASTER, year 2002

TECHNICAL DATA

• Y-axis movement: 4000 mm
• Y-axis movement: 2000 mm
• Z-axis movement: 115 mm
• Max. Speed X-axis : M / min 60
• Max. Speed y-axis: m/min 60
• Max. Speed simultaneous x-y: m/min 85
• Numerical control: Siemens 840D
• Laser power: 4000 Watts
• Maximum cutting thickness Fe: 20 mm
• Accuracy min. programmable travel: Mm 0.01
• Position deviation: Mm +/- 0.10
• Approximate electric consumption: Kw 33-53
• Weight: 16000 kg
• Color: White blue
• Approximate dimensions: Mm 13500 x 6300 x 2100 h

STANDARD CONFIGURATION

• automatic change pallets
• processing scraps conveyor
• fume suction system
• 5″cutting head with lens
• 7.5″ cutting head with lens
• safety cabin
• fume extraction
• multi-beam safety barriers
• automatic Lift-Master loading and unloading
• thickness 20 mm. Iron, 15 mm. stainless steel, 10 mm. aluminum
• overall dimensions and weight: 11600 mm. length, 5200 mm. width, 2000 mm. H, 16000 kg. (laser only)
• Electricity consumption of the entire system (aspirator, control, high frequency generator and cooling unit): 32 – 65 kw.
• Laser on about 17,500
• Radius on approximately 30,000
• Machine always maintained by Service Trumpf (all documented)
• Complete with all the CE instruction and statement books
