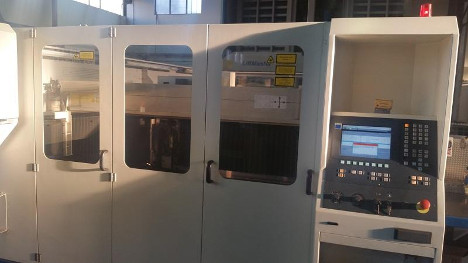

Trumpf TC4030-LiftMaster laser cutting machine

Trumpf TC4030 laser cutting with LiftMaster

Available in MACH-TRADE

n. 1 used LASER CUTTING TRUMPF mod. TCL4030 TLF3200 with LiftMaster, year 1999

TECHNICAL DATA

  • Y-axis movement: 4000 mm
  • Y-axis movement: 2000 mm
  • Z-axis movement: 115 mm
  • TECHNICAL DATA
  • Max. Speed y-axis: m/min 60
  • Max. Speed simultaneous x-y: m/min 85
  • Numerical control: Siemens sinumerik 840d
  • Laser power: 3200 Watt
  • Maximum cutting thickness Fe: 20 mm
  • Max. Weight processing: 1250 kg
  • Accuracy min. programmable travel: Mm 0.01
  • Position deviation: Mm +/- 0.10
  • Average dispersion band: Mm +/- 0.03
  • CO2 laser gas consumption: L / h 1
  • Laser gas consumption N2: L / h 6
  • Laser gas consumption He: L/h 13
  • Electro consumption approximate:
  • Kw 26-53
  • Weight: 16000 kg
  • Color: White blue
  • Approximate dimensions: Mm 11600 x 5200 x 2000 h

STANDARD CONFIGURATION

  • Automatic unloading LIftMaster
  • New resonator year 2010
  • drive: 3-phase servo motors
  • working area lighting
  • automatic change pallets
  • processing scraps conveyor
  • fume suction system
  • 5″cutting head with lens
  • 7.5″ cutting head with lens
  • oil spray lubrication
  • cutting gas pressure settings programming
  • power cycle programming
  • sprint las: increased speed processing by optimization of processing sequences
  • PCS
  • HI-LAS high pressure cutting
  • contour las for manufacturing small contours
  • safety cabin
  • fume extraction
  • multi-beam safety barriers
  • control: open PC based control system, easy to use, on line help, diagnostic functions, 3.5″ floppy disk drive, bnc-/ rj45 connection
