Available in MACH-TRADE

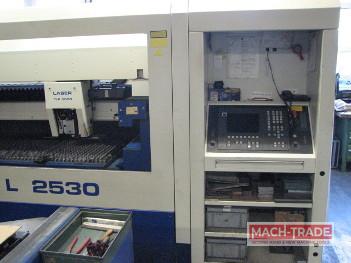

n. 1 used LASER CUTTING TRUMPF mod. TC-L2530, year 2000
TECHNICAL DATA
-
X axis movement: 2500 mm
-
Y axis movement: 1250 mm
-
Z axis movement: mm 115
-
Maximum X-axis speed: m/min 60
-
Maximum Y-axis speed: m/min 60
-
Max simultaneous speed X-Y: nm / min 85
-
Numeric control: Siemens 840D
-
Laser power: 3200 Watt
-
Maximum cutting thickness: Fe mm 20
-
Maximum processing weight: 710 kg
-
minimum programmable precision stroke: 0.01 mm
-
Position offset: mm -/- 0.10
-
Average dispersion band: mm -/- 0.03
-
CO2 Laser gas consumption: L/h 1
-
N2 Laser gas consumption: L/h 5
-
He Laser gas consumption: L/h 14
-
Color: White blue
- Laser: TLF 3000
STANDARD CONFIGURATION
-
drive: 3-phase servo motors
-
work area lighting
-
automatic pallet change
-
scraps conveyor
-
smoke suction system
-
5″ cutting head with lens
-
7.5-inch cutting head with lens
-
oil spray lubrication
-
security booth
-
suction fumes
-
multi-beam security barriers
-
pallet changer, load, auto las plus, cat eye
