Trumpf laser cutting TCL4030-TLF3200

Available in MACH-TRADE

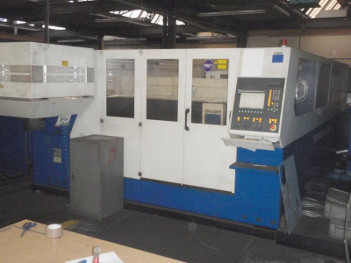

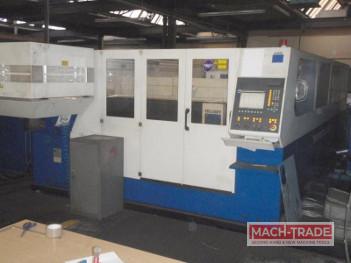

n. 1 used LASER CUTTING TRUMPF mod. TCL4030 TLF3200, year 2005

TECHNICAL DATA

• X-axis movement: 4000 mm
• Y-axis movement: 2000 mm
• Z-axis movement: 115 mm
• Max. Speed X-axis : M / min 60
• Max. Speed y-axis: m/min 60
• Max. Speed simultaneous x-y: m/min 85
• Numerical control: Siemens sinumerik 840d
• Laser power: 3200 Watt
• Maximum cutting thickness Fe: 20 mm
• Max. Weight processing: 1250 kg
• Accuracy min. programmable travel: Mm 0.01
• Position deviation: Mm +/- 0.10
• Average dispersion band: Mm +/- 0.03
• CO2 laser gas consumption: L / h 1
• Laser gas consumption N2: L / h 6
• Laser gas consumption He: L/h 13
• Electro consumption approximate:
• Kw 26-53
• Weight: 16000 kg
• Color: White blue
• Approximate dimensions: Mm 11600 x 5200 x 2000 h

STANDARD CONFIGURATION

• drive: 3-phase servo motors
• working area lighting
• automatic change pallets
• processing scraps conveyor
• fume suction system
• 5"cutting head with lens
• 7.5" cutting head with lens
• oil spray lubrication
• cutting gas pressure settings programming
• power cycle programming
• sprint las: increased speed processing by optimization of processing sequences
• PCS
• HI-LAS high pressure cutting
• contour las for manufacturing small contours
• safety cabin
• fume extraction
• multi-beam safety barriers
• control: open PC based control system, easy to use, on line help, diagnostic functions, 3.5" floppy disk drive, bnc-/ rj45 connection
