Trumpf TruBend 5230 with BendMaster 150

Available in MACH-TRADE

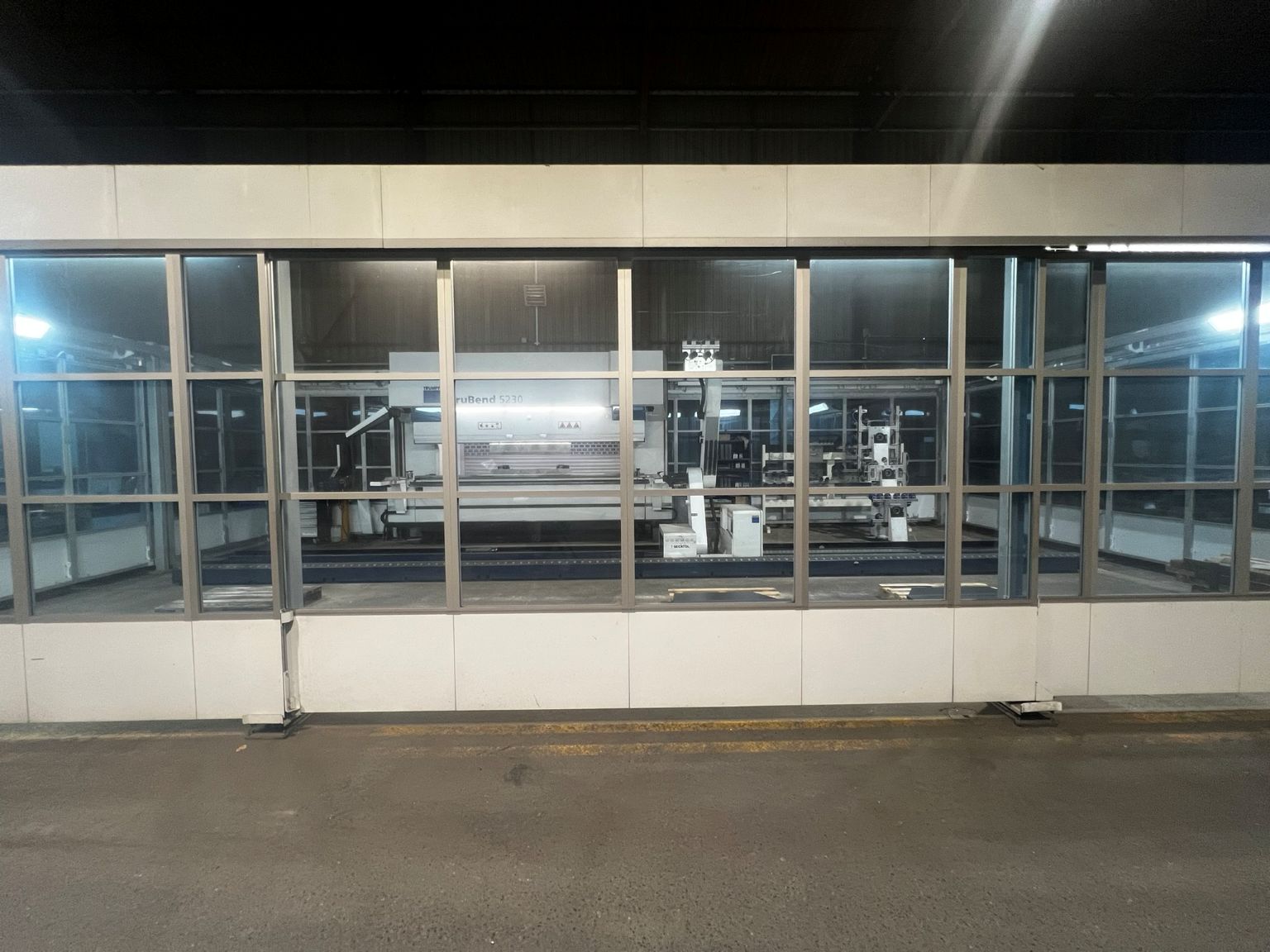

A used bending cell Trumpf TruBend 5000 consisting of TruBend 5230 and BendMaster 150

The TruBend Cell 5000 is an automatic bending cell reaching the goal to obtain a high range of parts with constant quality thanks to productive and flexible automation. This combination of machines allows the material flow to be freely configured thanks to conveyor belts and pallet conveyors.

Manufacturer TRUMPF
Type TruBend cell 5230 S (B03)
Year 2018
Bending length 4250 mm
Press force 230 to
Control TASC 6000
Stroke 445 mm
Beam entry 615 mm
Distance between side frames 3680 mm
Throat 420 mm

Standard configuration
Machine
⦁ Stable machine frame as all-steel construction
⦁ Ram, stress relief annealed
⦁ Spherical ram suspension, with ram tilt
⦁ Electro-hydraulic upper drive with 4-cylinder technology (IE3 drive motor)
⦁ Electronic pressure balance
⦁ Measuring system: With centered glass scales and temperature compensation.
⦁ Hydraulic oil filled in the machine (lifetime lubrication)
⦁ Oil cooler
⦁ Switch cabinet cooling (air-air heat exchanger)

Backgauge system
⦁ Backgauge system 2-axes
⦁ 2 pieces back gauge fingers

Tool holder
⦁ Manual upper tool clamping
⦁ Hydraulic lower tool

Crowning
⦁ Manual crowning: Integrated in the table, manual adjustable crowning via wedges.
Lower Tool Adjustement
⦁ Lower tool adjustment CNC, programmable
Safety
⦁ Standard Safety equipment

Control options
⦁ TRUMPF TASC 6000
⦁ Network connection machine control

Operation
⦁ Communication Track: For use of ACB-angle sensor tools (module) and the options Mobile Control
⦁ Control panel: With LCD panel, footswitch for Emergency up, down and E-STOP

Additional Equipment
Backgauge system
⦁ 6-axis backgauge system

Clamping system
⦁ Hydraulic upper tool clamping

Crowning options
⦁ CNC crowning

Machine Options
⦁ Tank heating
⦁ Additional options TruBend
⦁ Optical setup and positioning aid
⦁ Work area lighting rear
⦁ Work area lighting front
⦁ Switch cabinet air conditioning
– Up to 50 °C ambient temperature

Automation

Standard configuration BendMaster (150)
Machine
⦁ Stable frame and manipulator: Light-weight and rigid aluminum cast construction
⦁ Payload: the max. payload of 150 kg consists of gripper and blank weight. The max. blank weight is 100 kg
⦁ Floor tracks: Low in height, of welded construction with stable guide rail. Length 6000 mm, travel 4550 mm
⦁ Electrical drives: Electrical servo-motors with gearing
⦁ Double sheet detection
⦁ Sheet sensor
⦁ Rotary harness for easy Gripper change
⦁ Gripper coupling
⦁ Sensors for 4-axis backgauge system
⦁ Vacuum generation for suction Grippers
⦁ NC repositioning station
⦁ Platform for TruBend

Safety
⦁ Safety fence with access door

Control options
⦁ TRUMPF PC control with operating terminal
⦁ Comfort operation with monitor, mouse, keyboard

Automation options
Extension of floor tracks
⦁ Extension of floor tracks to 12 m
Material handling
⦁ Sensor for 6 axis back gauge
⦁ Automatic Gripper change module
Vacuum Gripper Technology
⦁ 2 x vaccuum grippers
⦁ Vacuum Gripper kit without separator
– contains several components for assembling another 3 grippers
