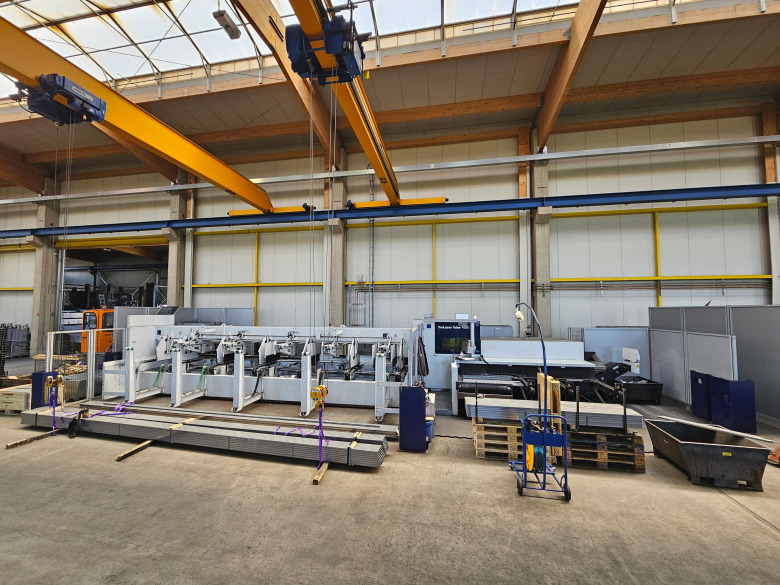

TruLaser Tube 5000 fiber (T06)

Available in MACH-TRADE SRL

Trumpf TruLaser Tube 5000 T06 Fiber 3000 Watt Year 07/2019

Machine hours: about 28.000 / 22.000 / 14.000 h

Standard equipment Machine

– Feed station with self
-centering clamping jaws
– Tube support (raw material) with automatically retractable tube supports
– Push-through chuck with self-centering clamping rollers
– Work area lightning
– Tube support (finished part) with extendable guide rollers
– High-precision drives
– Parts rack (contains 1 belt table and belt table extension)

Laser
– Laser power control
– laser log book function
– Closed beam guidance via fiber optic cable (LLK)
– Excitation via pump diodes Cutting head
– Lens cutting head with 150 mm focal length Control
– Integrated technology data
– Trumpf control based on Sinumerik 840 D SL
– Automatic switch-on and shut-down device
– Programmable gas pressure
– Condition Guide
– Interface Remote Support
– Rotatable control desk with 19“ touchscreen

Functions
– ControlLine
– FocusLine
– NitroLine Data transfer
– USB interface
– Online update manager
– RJ 45 network connection
– Central Link
– Wireless Operation Point Safety
– safety cabin with Macrolon panels
– Monitoring system for gas pressure, temperature and cooling water
– CE marking
– one-beam and two-beam light barriers

Advanced standard equipment
– Solid-state laser TruDisk 2001 with 1 fiber optic cable laser output
– LoadMaster Tube for 6.5 m raw material length
– Laser chiller unit (water – air)
– Machine bed for 6,5 m raw material length
– Part removal station for 3,0 m finished part length
– Compact dust extraction unit Machine accessoires
– Guide rollers for round and rectangular tubes
– Clamping jaws up to D152 mm
– Quick change form cups for rectangular tubes
– Quick change form cups for round tubes up to D152 mm Additional options
– Machine bed for 8,0 m raw material length
– Stable steel sheet welding construction
– High accurate, hardened guides
– Loadmaster Tube for 8,0 m raw material length
– Automatic tube supply
– Integrated length measurement and zero point positioning
– Conveyor line
– Finished part length +1,5 m
– Incl. additonal finished part support
– Solid-state laser TruDisk 3001
– RapidCut
– Using a dynamic additional axis
– More than 4 times accelerations possible
– SeamLine Tube with inside detection
– Welding seam detection inside and outside of the tube
– PierceLine
– Optimal piercing
– Dot Matrix Code
– Parts identification marking
– Bundle magazine LoadMaster Tube
– Max. bundle weight 5000 kg
– Automatic set-up LoadMaster Tube
– Automatic set-up of tray height and tray width
– Low-scratch version LoadMaster Tube
– plastic rolls and plastic brackets
– Installation of Loadmaster Tube in the front
– CO2 fire extinguisher for compact dust extraction unit
