Prima-Industrie Syncrono laser cutting

Available in MACH-TRADE

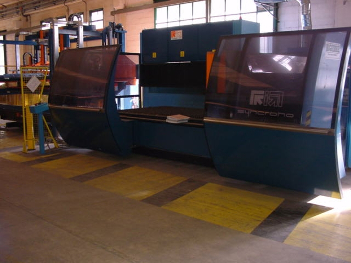

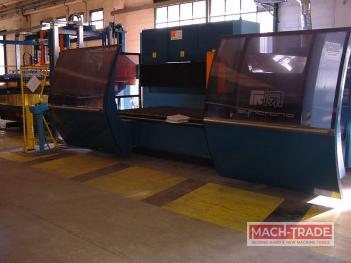

n. 1 used LASER CUTTING plant Prima Industrie mod. SYNCRONO, year 2007

FEATURES

• Very high dynamics: 60 m / s² acceleration
• Movable optics: the piece is stopped during processing
• Monolithic structure: all the elements are integrated in a single block, easily transportable
• Cantilever architecture with accessibility from 3 sides
• Quick and easy installation (no foundation required)
• Two-axis head (U and V) with parallel kinematics architecture
• 5 “and 7.5” lens, to go from the smallest to the highest thicknesses
• Constant-length optical chain throughout the working range
• Programmable automatic control of the focal position
• Capacitive sensor
• Raw sheet centering system by sensor
• Laser Piercing Monitor (LPM) to optimize the process of heavy thicknesses
• Active device to protect the nozzle from accidental impacts
• CP4000 and CV5000 laser generators: the new CV5000 laser has a magnetic sustained turbine and solid state high voltage power supply
• MAESTRO-Libellula off-line programming software

CNC PRIMACH-20L

• MMI with web technology, S.O. Windows®
• numerical control based on standard PC with S.O. LINUX / RTAI
• axis control card with high performance DSP processor
• digital drives connected in optical fiber
• 15 “LCD flat screen, touch screen and trackball
• technological tables on board the machine (TOB)

Main options:

• Plasma Monitoring and Restart
• Automatic pallet change
• Sheet loader

Flexible and modular automatic sheet metal handling systems of the Server line.
