Trumpf laser cutting TC-L6030

Available in MACH-TRADE

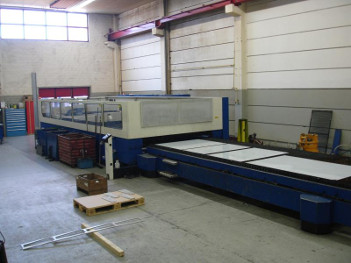

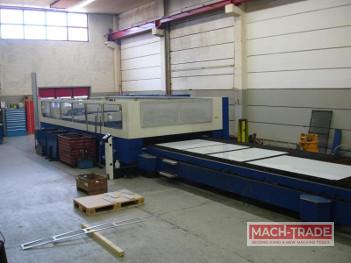

n. 1 used LASER CUTTING TRUMPF mod. TC-L6030 TLF3200 year 2006

TECHNICAL DATA

• Movimento asse y: Mm 6000
• Y-axis movement: 2000 mm
• Z-axis movement: 115 mm
• TECHNICAL DATA
• Max. Speed y-axis: m/min 60
• Max. Speed simultaneous x-y: m/min 85
• Controllo numerico: Siemens
• Laser power: 3200 Watt
• Maximum cutting thickness Fe: 20 mm
• Peso max. lavorazione: Kg 1900
• Accuracy min. programmable travel: Mm 0.01
• Position deviation: Mm +/- 0.10
• Average dispersion band: Mm +/- 0.03
• CO2 laser gas consumption: L / h 1
• Laser gas consumption N2: L / h 6
• Consumo gas laser he L/h 13
• Consumo elettr. approx: Kw 32-65
• Peso: Kg 21500
• Colore: bianco blue
• Dimensioni approx: Mm 16100 x 5200 x 2000 h

STANDARD CONFIGURATION

• drive: 3-phase servo motors
• working area lighting
• automatic change pallets
• processing scraps conveyor
• fume suction system
• 5″cutting head with lens
• 7.5″ cutting head with lens
• oil spray lubrication
• sprint las: increased speed processing by optimization of processing sequences
• contour las for manufacturing small contours
• autolas
• safety cabin
• fume extraction
• multi-beam safety barriers
