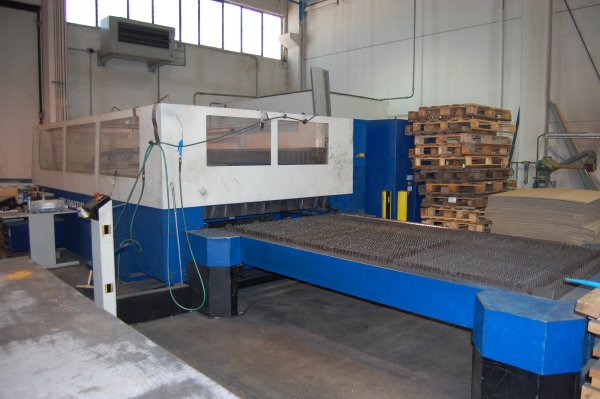

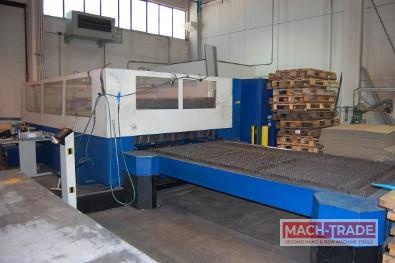

Laser Cutting Trumpf TCL3030-TLF3000
Available in MACH-TRADE
n. 1 used LASER CUTTING TRUMPF mod. TCL3030 TLF3000 year 2001
TECHNICAL DATA
- X-axis movement: mm 3000
- Y axis movement: mm 1500
- Z axis movement: mm 115
- Maximum X-axis speed: m/min 60
- Maximum Speed y-axis: m/min 60
- Simultaneous Max speed X-Y: m/min 85

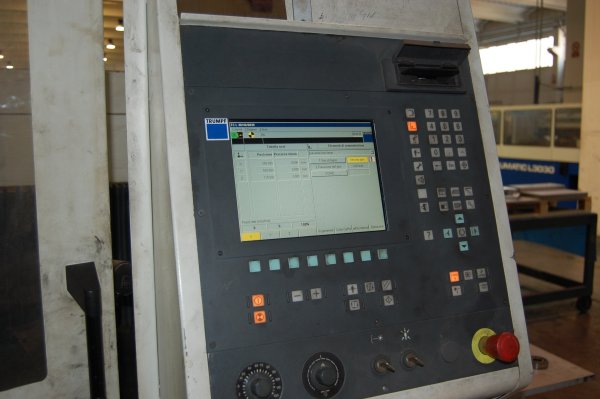

- Numeric control: Siemens 840D
- Laser power: W 3000
- Maximum cutting thickness: fe mm 20
- Maximum processing weight: kg 710
- min. programmable stroke precision: mm 0.01
- Position offset: mm -/- 0.10
- Average dispersion band: mm -/- 0.03
- CO2 Laser gas consumption: L/h 1
- N2 Laser gas consumption: L/h 5
- He Laser gas consumption: L/h 14
- Approx. elettr. consumption: Kw 33-53
- Weight: kg 11500
- Color: White blue
- Approx dimensions: mm 9800 x 4600 x 2000 h
STANDARD CONFIGURATION
- drive: 3-phase servo motors
- work area lighting
- automatic pallet changer
- scrap conveyor
- fume extraction system
- 5″ cutting head with lens
- 7.5″ cutting head with lens
- magnetic turbine
- oil spray lubrication
- sprint las increase processing speed through optimization of processing sequences
- contourlas for production small contours
- auto las
- security booth
- suction fumes
- multi-beam security barriers
