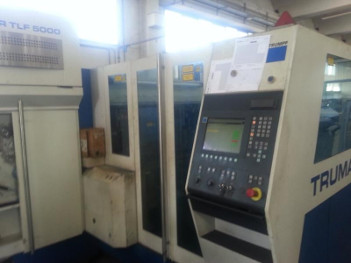

n. 1 used LASER CUTTING TRUMPF mod. TCL3050 TLF5000, year 2005
TECHNICAL DATA
X-axis movement: mm 3000
Y-axis movement: 1500 mm
Z-axis movement: 115 mm
Max X-axis speed: M / min 200
Max Y-axis speed: M / min 200
Max simultaneous speed x-y: M / min 300
CNC: Siemens sinumerik 840 d
Laser power: 5000 Watts
Max. Sheet thick./St: 25 mm
Max. Sheet thick./VA: 20 mm
Max. Sheet thick./AI: 12 mm
Max working weight: 900 Kg
Precisione min. corsa programmabile: Mm 0,001
Position deviation: Mm +/- 0.10
Average dispersion band: Mm +/- 0.03
CO2 laser gas consumption: L / h 1
Laser gas consumption N2: L / h 6
Laser gas consumption He: L/h 13
Approximate electric consumption: Kw 33-72
Weight: 12000 kg
Color: White blue
Approximate dimensions: mm 11250 x 4600 x 2400 h
STANDARD CONFIGURATION
laser unit: CO2 laser TLF 5000, radio-frequency excited, chiller, logbook function
drive: 3-phase servo motors
working area lighting
4 cutting heads
oil spray lubrication
cutting gas pressure settings programming
power cycle programming
plasma pms sensor: process safety in high thickness steel cutting
sprint las: increased speed processing by optimization of processing sequences
HI-LAS high pressure cutting
autolas-plus: sistema di raffreddamento degli specchi con valvola proporzionale che consente il raffreddamento in qualsiasi punto della macchina. The mirrors cooling influences the focal length.
contour las for manufacturing small contours
safety cabin
fume extraction
multi-beam safety barriers
Shopfloor programming ToPs 100 lite
control: open PC based control system, easy to use, on line help, diagnostic functions, 3.5″ floppy disk drive, bnc-/ rj45 connection
