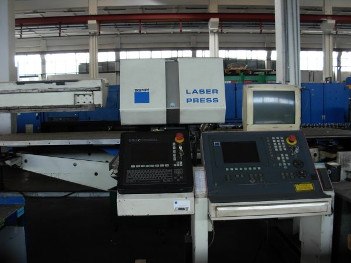

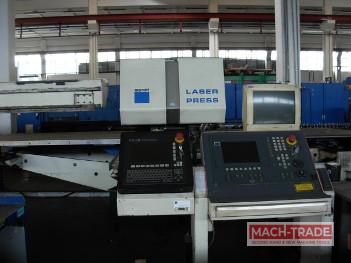

Trumpf Trumatic TC-600L FMC

Available in MACH-TRADE

TRUMPF TRUMATIC TC 600L FMC, punch laser combination machine with new resonator and SheetMaster.

Technical data:

• X axis movement: 3000 mm
• Y axis movement: 1500 mm
• Maximum X axis speed: M/Min 90
• Maximum Y axis speed: M/Min 60
• Max Simultaneous Speed: M/Min 108
• Number Of Strokes: 1/Min 600
• Numerical Control: Siemens Sinumerik 840D
• Laser power: 1500 W
• Punch Diam. Max: 76,2 mm
• Plate Thickness Max.: 8 mm
• Tools Automatic Changing: Stk 19
• Punch Power Max: kN 220
• Color: White Blue
• Weight: Kg 16700
• Pneumatic Power: Nm3/H
• Electrical Power: Kva 65
• Dimensions: mm 8100 X 7500 X 2400 H

Standard configuration:

• Coordinate guide with integrated linear magazine, 19 tool stations, 2 clamps
• Drives: Maintenance-free, three-phase servo motors
• Amortized installation
• Nitroline
• Marking
• Tapping
• Multitool
• Softpunch
• Blowing device
• Programmable presser foot for repositioning
• Sensor-monitored part chutes 500 x 500 mm for punching and laser station, ejection cylinder on the laser chute
• 2 parts containers- Automatic shutdown
• HI-LAS, high pressure cutting
• ContourLas, for small punch holes production

• Punching head: Hydraulic single tool adapter, 360° rotation of all tools, automatic tool length compensation, spray tool lubrication, 2nd lubricant container, vacuum slug removal, swarf bucket
• Sinumerik 840D control: Open PC-based control system, easy to use, Online help, diagnostic functions, maintenance logbook, technology data, Teleservice, 3.5″ disk drive, BNC/RJ45 connection
• Safety: safety barriers, laser monitoring system, fume extraction system
• New TLF 2200 resonator replaced at the end of 2007
