TruLaser 5030 (L76) Watt 10000, year 2022

Available in MACH-TRADE

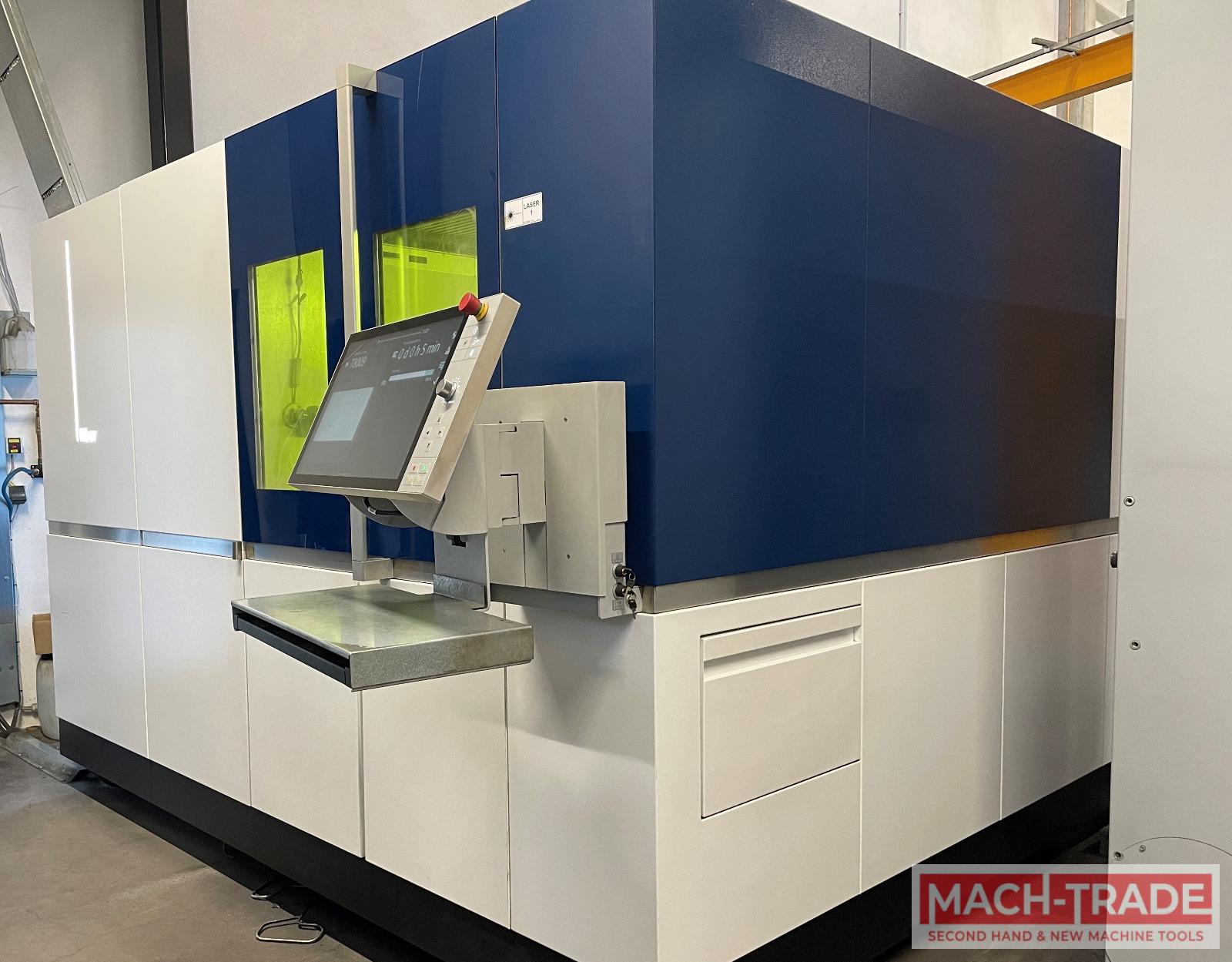

LASER CUTTING MACHINE TRUMPF TRULASER 5030 FIBER (L76), 12000 WATT

Manufacturer TRUMPF
Type TruLaser 5030 L76
Year 2022
Working area 3000 x 1500 mm
Laser rated output 12000 Watt
Control Sinumerik 840D SL
Max. sheet thick./ST 50 mm
Max. sheet thick./VA 50 mm
Max. sheet thick./AI 40 mm
Max. speed 140 m/min

Standard configuration

Machine
• Box frame
• Longitudinal conveyor belt
• Gantry drive in combination with linear direct drives
• Process cooler for machine and laser (water/air)
• Work area illumination
• Pilot laser
• Spraying equipment
• Automatic nozzle cleaning
• Integrated electrical cabinets
• Integrated cabinet
• Closed beam guidance via laser light cable (LLK)
• Machine status light

TRUMPF laser
• Excitation using pump diodes
• Laser power control

Cutting unit
• Single cutting head strategy
• Protective glass
• Online condition checking of protective glass
• Dynamic Focus Control
• Automatic nozzle centering
• Universal cutting unit with fully adaptive lens system

Functions
• AdjustLine
• BrightLine Fiber
• ControlLine
• FastLine
• FlyLine
• FocusLine
• NitroLine
• PierceLine
• Fusion cut performance package
• Highspeed cutting package
• Copper cutting package
• Brass cutting package

Control
• Quick post-production
• SINUMERIK 840D SL Control
• Ergonomic control panel with 21.5″ wide-screen multi-touch color display
• Integrated technology data
• Auto-shutdown
• Programmable cutting gas/pressure selection
• Microweld
• Remote support interface
• Production plan
• Multi-sheet processing
• Condition Guide
• Cutting Guide

Safety
• CE marking
• Light barriers
• Multi-chamber compact dust extractor
• Electrical rolling roof
• Enclosed protective housing with certified door viewing panel on the right and left

Data transmission
• USB interface
• RJ45 network interface
• Central Link
• Online Update Manager

Advanced standard configuration
• Compact dust extractor
• Slats made of mild steel (67 mm)
• Automatic pallet changer in longitudinal direction
• Machine environment temperature +5°C to 35/45°C

Additional equipment
Advanced laser equipment
• External solid-state laser TruDisk 12001
– Includes Smart Beam Control

Additional functions machine
• Prefilter for gases
– Prefilter for filtering particles in nitrogen and oxygen gas lines
• Smart Nozzle Automation
– Includes nozzle changer
– Automatic nozzle inspection

Additional cutting packages
• Cutting package Highspeed Eco
– High-speed cutting at low gas consumption
• Cutting package for thick sheets

Advanced machine equipment
• Wide transverse conveyor belt with tipping container (to the right of the machine)
• Cleaning brush
• Slag cart under pallet changer

Compact dust extractor options
• 2 x 30 l disposal unit for compact dust extractor
Installation
• Mezzanine version of machine
– Steel structure not included

Automation

Preparation LiftMaster Compact
• LiftMaster Compact 1530 (AL 34) available at an additional cost
