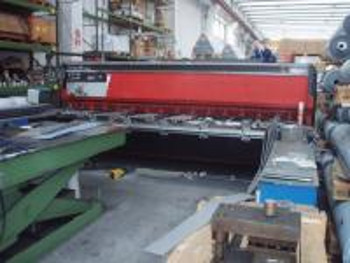

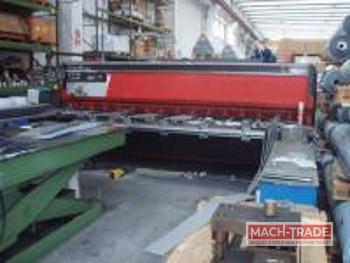

Schiavi Hydraulic Shear GH540A

Available in MACH-TRADE

SCHIAVI Hydraulic shear type GH 540A with motorized back-gauge

Technical features:

• Cutting length: 4040 mm
• Sheet metal cutting capacity R = 40 kg mm²: 5 x 4040 – 6 x 1600 mm
• Sheet metal cutting capacity R=60 kg mm²: 3 x 4040 mm
• Number of stroke (stroke mn) without stroke selector: 20 to 30
• Number of stroke (stroke mn) with stroke selector: 20 to 55
• Cutting angle variance from-to: 0°29′ – 1°14′
• Installed power: 9 kW

Equipment:

• Motorized back-gauge with “ENC 1” control
• Support metal sheet

Approximate dimensions:

• Length: 4570 mm
• Width: 2310 mm
• Height: 1705 mm
• Weight: 11000 kg
