Punching machine Trumpf TruPunch 5000 – 1600 (S12) FMC
Technical Sheet
Available in MACH-TRADE

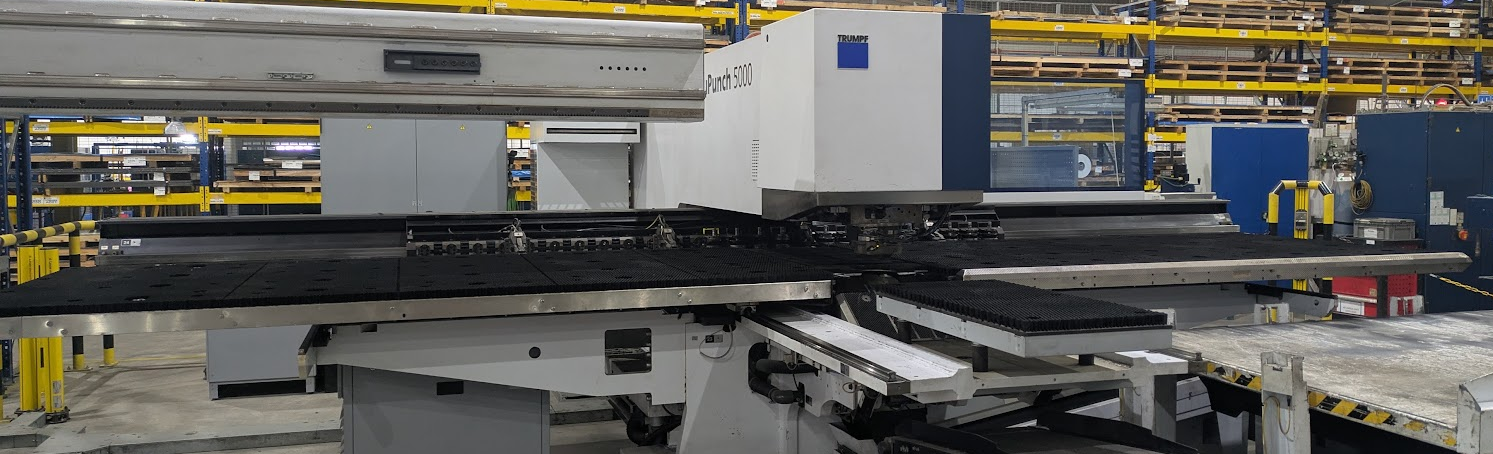

n. 1 used Punching machine Trumpf TruPunch 5000 – 1600 (S12) FMC with loading unloading system SheetMaster Year 2017
Type: TruPunch 5000 – 1600 (S12)
Working area: 3050 x 1550 mm
Punching force: 22 to
Control: Siemens Sinumerik 840 D
Max. sheet thick: 8 mm
Max. material weight: 230 kg
CONFIGURATION
Standard configuration
Stable C-frame for easy access
Coordinate guide for high-precision machining
Linear magazine inclusive four clamps
Drives with maintenance free 3-phase servo motors
Repositioning unit with programmable stripper
Ball-fitted tables
Parts flap 500 x 500 mm
Good parts container
On-Demand Drive
Automatic shutdown mechanism
1st index pin position inner side (right hand)
Punching station
Electro-hydraulic punching head
Rotatable single tool adapter
Programmable presser foot
Stripper position sensor
Tool length compensation
Punch stroke rate and thread stroke rate counters
Spray lubrication for punches
Vacuum slug removal with condition monitoring
Forming
Monitoring of fill level of tapping and tool lubrication
Control
Open controller based on Sinumerik 840D Solutionline
Control panel with 19“ TFT touch screen
NC program management
Production plan
Integrated technology data
Data transmission
USB interface and network connection
Safety
CE marking
Multi-beam light barriers
Rapid hydraulic shutdown
Sheet collision detection
Additional equipment
Punching options
Function MultiTool
Function MultiShear
Function MultiBend
Function tapping incl thread counter breakage monitoring
Function marking rapid beading
Function engraving
Function deburring and roller technology
Adaptive stroke calibration
Stripline
Smart Punch Monitoring (breakage control for punch) with function sheet format recognition
Active die
Die spray lubrication with monitoring of fill level
Machine options
Retractable clamps
Clamps opening individually (each)
High-adjustable clamps (each)
Sensor for part chute
Installation on air cushions
Chip conveyor with tilt container
Options for thin sheet processing
Brush tables with loading and unloading aid
Blow-out device for small parts
Variable Vacuum slug removal
Automation
SheetMaster
Standard configuration StheetMaster AS 15 Multi-functional sheet handling system for automated processing of sheet formats up to 3000 x 1500 mm
Loading station with fanning magnets
Suction frame 3000 x 1500 mm
Suction cups with peeler cup
Vacuum sensor for each circuit
Sheet thickness sensor for double sheet check
Clamp closing automatically
GripMaster
Standard configuration Automation component for removing scrap skeletons 3000 x 1500 mm
Removal of scrap skeletons and remainder strips with the GripMaster
Automatic stacking of scrap skeletons in specified position on a scissors table
The scrap skeleton is removed almost simultaneously to loading of a new sheet
Process monitoring through sensors in the skeleton grippers
Tiltable skeleton pallet 3000 x 1500 mm
SortMaster Box
Standard configuration SortMaster Box B4 Automatic workpiece sorting unit
Sorting unit with 4 bins
Automatic removal and sorting of parts straight from the part chute
Max part size 500 x 500 mm
Enables optionally easy exchange of the bins without interrupting production
ToolMaster Linear
ToolMaster Linear with 18 tool stations
Extended capacity for 18 tool stations
Tool setup parallel to production
Cart systems with belt drives (3000 x 1500 mm)
Double cart unloading incl store interface
To double the capacity for holding finished parts
Part sorting in combination with the SheetMaster
