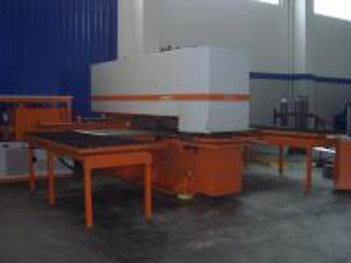

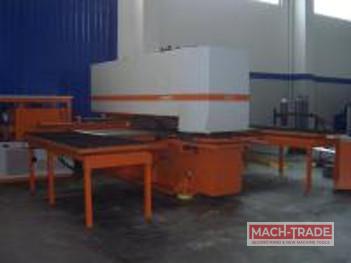

Punching machine Cimsa mod. P222R

Available in MACH-TRADE

n. 1 used punching machine CIMSA mod. P222 R year 2005

TECHNICAL DATA

• X axis movement: 2500 mm
• Y axis movement: 1300 mm
• Punching Force: 20 t
• Max. sheet thickness: 6.35 mm
• Piece max weight to max movement speed: Kg 180
• Max. shearing diameter: 80 mm
• Max positioning speed axes X – Y: 80 m/min
• Max simultaneous movement speed X- Y axes: 110 m/min
• Max rotation speed rotation tools: 50 rpm
• Max punching cadence: 1/min 600
• Tool-change time : 0,5-2 sec
• Working area height: 1000 mm
• Positioning accuracy: mm +/- 0.1
• Positioning tolerance: mm +/- 0.03
• Electric Power: 18 kWA
• Dimension Approx: 8450 x 5700 mm
• Height: 2700 mm
• Weight: Kg 13320

STANDARD TOOL TURRET CONFIGURATION

• N° 10 Until Diameter 20 Mm
• N° 6 Until Diameter 35 Mm
• N° 2 Until Diameter 50 Mm
• N° 2 Until Diameter 80 Mm
• N° 2 Until Diameter 80 Mm Rot.
