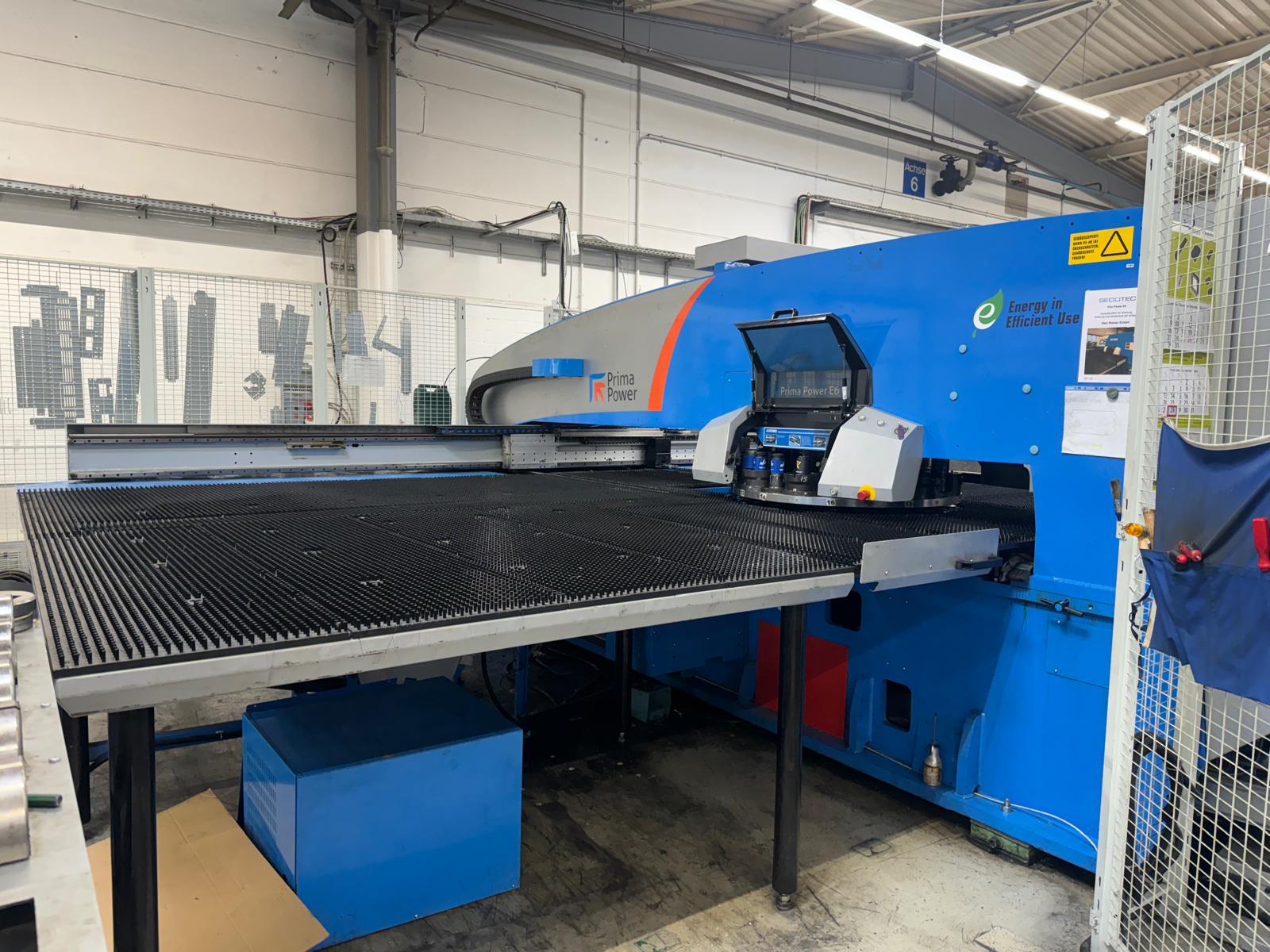

Punching machine Prima-Power E6 + LST

Available in MACH-TRADE SRL

N°1 Prima Power E6 + LST – Turret punching press Year 2012

-Servo-electric drive for punching
-3000 kN punching force
-Working area 1500 x 3000 mm. without repositioning
-3 clamping claws with central locking system
-Brush tables for max. sheet size (1500 mm. x 3000 mm.)
-Programmable clamp positioning (PCS)
-18 stationary tool holder
-2 rotatable tool holder
-Easy loading with 4 stops
-Sinumerik 840D
-TULUS graphical user interface
-Ethernet port for network connection

Tool holder options
-4 rotating stations additonally
-Rotating forming system servo-electric
-200kN closing force
-12mm Hub

Tool holder multitool
-MT 24-8 (24 tools up to Ø 8 mm.)
-MT 10-16 (10 tools up to Ø 16 mm.)
-2 MT 3Ri additionally
-1 MT 8Ri additionally

Machine options
-increase in punching force to 300 kN
-Tool lubrication system (WLS or Ultra tool holder required)
-Punching slug conveyor SCIVTM
with vacuum extraction and slats in metal
-Inclined conveyor SC2M for punching slugs (slats in metal)
-Parts flap 500×500 mm and parts conveyor I
(1 pallet under machine table, I support frame) – PCI-A
-SU 3: sorting solution for parts flap, parts conveyor and sorting system (3 wooden pallets)
-Sensors for parts flap

Charging and discharging modules large format punching
Loading and stacking system LST 6 (LST/L/-/-/UDC) long version
-Station with magnets for sheet metal separation on the floor
-Stops for prefabricated pallets on the floor
-Unloading table for scrap skeletons, lifting table
-Magnets for removing individual parts, assignment according to the enclosed plan

Options LST
-2 movable loading or unloading table, on top of each other (2A)
-2 movable table top for aligning sheet metal

Safety equipment for LST
-Light barrier for security system No. 3
