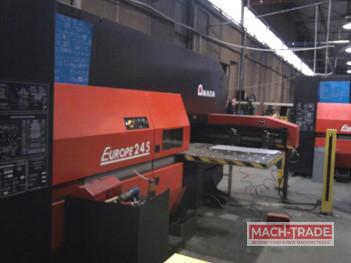

Punching machine Amada Europe 245

Available in MACH-TRADE

n. 1 used punching machine Amada mod. Europe 245 – 20 t

TECHNICAL FEATURES

• Year 2000
• Working power: 20 t
• Max thickness of metal sheet: 6 mm
• Max weight of metal sheet : Kg 100
• Working area: 1000 x 1270 mm
• Working area with automatic repositioning: 1000 x 2500 mm
• Throat depth: 1250 mm
• Axes movement max speed: 50 m/min
• Positioning accuracy: +/- 0,1 mm
• Stroke: 32 mm
• Max punching diameter: 88,9 mm
• Punching rate with 25 mm pitch: 200
• Power: 15 kVA
• Air (5 bar): 100 l/min
• Net weight: 10000 kg

STANDARD COMPONENTS

• signal of failure to extract the punch
• strokes counter for each single station
• strokes counter
• piece counter
• 2 hydraulic clamps
• device for automatic repositioning of the sheet
• hydraulically operated group
• motors: AC servo Motor (brushless)
• automatic lubrication
• Scrap unloading hatch: 350 x 350 mm

Turret configuration:

• N° stations: 19
• Rotation per minute: 30
• Circuit number: 1
• Distance between lower and upper turret: 20 mm

Configuration:

• A: n. 12 diam. until 12.7 mm
• B: n. 6 diam. until 31.7 mm
• C: n. 2 diam. until 50.8 mm
• D: n. 2 diam. until 88.9 mm
• Index from: 1° to 360°
• Min angle programmable: 0.01°
• Rotation per minute: 60
• Rotation system: bidirectional

CNC NUMERIC CONTROL

• Control: Fanuc 16PA
• 14 “color graphics monitor
• Memory capacity: 64 kbytes
• Controlled axes: 4
• Input resolution: 0.01 mm
• Maximum programmable value: 99.999,99 mm
• Programming system: incremental, absolute
• Interface RS232C
