Press brake Trumpf TrumaBend V230X

Available in MACH-TRADE

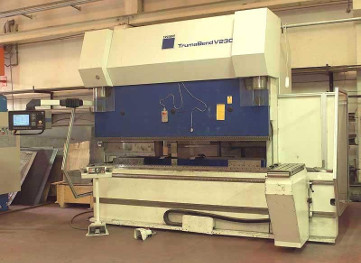

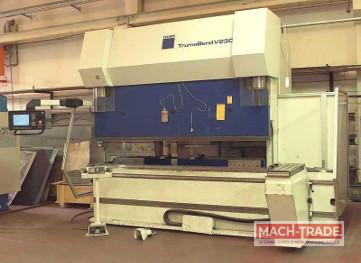

A Trumpf hydraulic press brake TrumaBend V230X synchronized 6 axis

Technical data:

• Year of manufacture: 2000
• Bending Length: 3060 mm
• Pressure Max: 230 t
• Max Stroke: 365 mm
• Opening: 535 mm
• distance between the uprights: 2690 mm
• Gap: 410 mm
• Table Width : 200 mm
• Working level height : 1050 mm
• Motorized backgauge: 860 mm
• Motorized backgauge working length: 600 mm
• Max speed motorized backgauge: 500 mm/sec
• Max stroke R: 250 mm
• Approach speed: 200 mm/sec
• Working speed min-max: 1-10 mm/sec
• Return speed: 135 mm/sec
• Motor power: 30 kW
• oil filling: 400 L
• Weight: 18210 kg
• Dimension: 3660 x 2310 mm
• Height: 3095 mm
