Laser cutting Trumpf TCL3030-TLF1500

Available in MACH-TRADE

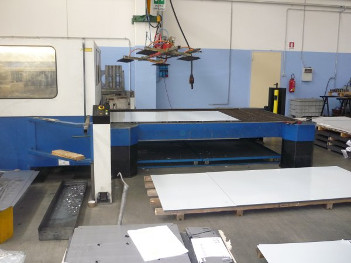

n. 1 used LASER CUTTING TRUMPF mod. TCL3030 TLF1500 with Rotolass spindle

TECHNICAL DATA

• X-axis movement: mm 3000
• Y axis movement: mm 1500
• Z axis movement: mm 115
• Maximum X-axis speed: m/min 60
• Maximum Y-axis speed: m/min 60
• Simultaneous max speed: m/min 84
• Numeric control: Bosch trumagraph cc 220s
• Laser power: Watt 1500
• Maximum cutting thickness: fe mm 12
• Maximum processing weight: 710 kg
• Minimum precision programmable ride: mm 0.01
• Position offset: mm -/- 0.10
• Average dispersion band: mm -/- 0.03
• CO2 Laser gas consumption: L/h 1
• N2 Laser gas consumption: L/h 5
• He Laser gas consumption: L/h 14
• Approx. elettr consumption.: Kw 33-53
• Weight: Kg 11500
• Color: White blue
• Approx size: mm 9800 x 4600 x 2000 h

STANDARD FEATURES

• drive: 3-phase servo motors
• work area lighting
• automatic pallet change
• scraps conveyor
• smoke suction system
• 5″ cutting head with lens
• 7.5-inch cutting head with lens
• lubrication oil spray
• security booth
• suction fumes
• multi-beam security barriers
