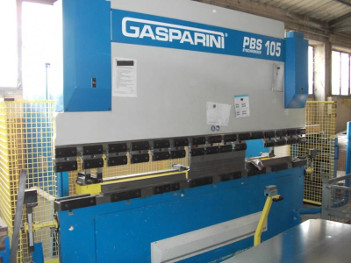

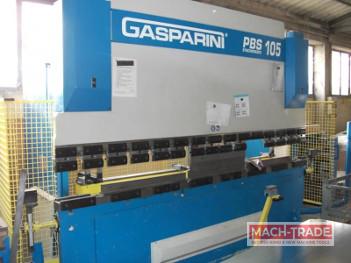

Gasparini PBS-105 hydraulic press brake

Available in MACH-TRADE

A HYDRAULIC PRESS BRAKE Gasparini model PBS 105 synchronized 6 axis

Technical data:

• Max. pressure: 105 t
• Bending length: 3100 mm
• Gap: 350 mm
• Blade dimension: 3100 mm
• Prism dimension: 3100 mm
• Width between uprights: 2600 mm
• Table/beam distance: 200 mm
• Approach speed: 100 mm/s
• Working speed: 0÷10 mm/s
• Return speed: 100 mm/s
• Motorized backgauge
• Motor power: 11 kW – 380 V
• Control: DELEM DA65 graphic video
• Weight: 7400 kg

Dimension approx.:

• Length: 3750 + 950 (CNC)
• Width: 1645 mm
• Height: 2605 mm

Equipment:

• Year: 1998
• CE certified 2004
• Synchronized 6 axis
• Automatic hydraulic crowning
• 2 front supports metal sheet
