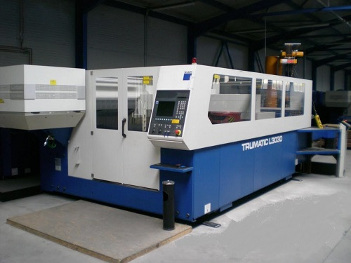

Laser Cutting Trumpf TCL3030-TLF3200

laser cutting Trumpf TCL3030-TLF3200

Available in MACH-TRADE

n. 1 used LASER CUTTING TRUMPF mod. TCL3030 TLF3200 year 2007

TECHNICAL DATA

  • X-axis movement: Mm 30004
  • Y-axis movement: 1500 mm
  • Z-axis movement: 115 mm
  • Max. Speed X-axis : M / min 60
  • Max. Speed y-axis: m/min 60
  • Max. Speed simultaneous x-y: m/min 85
  • Numerical control: Siemens 840D
  • Laser power: 3200 Watt
  • Maximum cutting thickness Fe: 20 mm
  • Maximum processing weight: 710 kg
  • Accuracy min. programmable travel: Mm 0.01
  • Position deviation: Mm +/- 0.10
  • Average dispersion band: Mm +/- 0.03
  • CO-2 Laser gas consumption: L/h 1
  • N2 Laser gas consumption: L/h 5
  • He Laser gas consumption: L/h 14
  • Approximate electric consumption: Kw 33-53
  • Weight: Kg 11500
  • Color: White blue
  • Approx dimensions: Mm 9800 x 4600 x 2000 h

STANDARD CONFIGURATION

  • drive: 3-phase servo motors
  • working area lighting
  • automatic change pallets
  • processing scraps conveyor
  • fume suction system
  • 5″cutting head with lens
  • 7.5″ cutting head with lens
  • magnetic turbine
  • oil spray lubrication
  • increase processing speed through optimization of processing sequences
  • contour las for manufacturing small contours
  • autolas
  • safety cabin
  • fume extraction
  • multi-beam safety barriers
