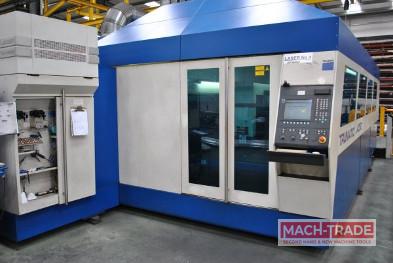

n. 1 used LASER CUTTING TRUMPF mod. TC-L4050 TLF5000, year 2003
TECHNICAL DATA
X-axis movement: 4000 mm
Y-axis movement: 2000 mm
Z-axis movement: 115 mm
Max X-axis speed: M / min 200
Max Y-axis speed: M / min 200
Max simultaneous speed x-y: M / min 300
Numerical control: Siemens sinumerik 840d
Laser power: 5000 Watts
Max. Sheet thick./St: 25 mm
Max. Sheet thick./VA: 20 mm
Max. Sheet thick./AI: 12 mm
Max working weight: 900 Kg
Accuracy min. programmable travel: Mm 0.01
Position deviation: Mm +/- 0.10
Average dispersion band: Mm +/- 0.03
CO2 laser gas consumption: L / h 1
Laser gas consumption N2: L / h 6
Laser gas consumption He: L/h 13
Electro consumption approximate:
33-72 Kw
Weight: 12000 kg
Color: White blue
Approximate dimensions: Mm 13000 x 5400 x 2400 h
STANDARD CONFIGURATION
Laser unit: CO2 Laser TLF 5000 Watt, radio-frequency excited, chiller, logbook function
drive: 3-phase servo motors
working area lighting
5″cutting head with lens
7.5″ cutting head with lens
oil spray lubrication
cutting gas pressure settings programming
power cycle programming
plasma pms sensor: process safety in high thickness steel cutting
sprint las: increased speed processing by optimization of processing sequences
HI-LAS high pressure cutting
auto las plus: mirror cooling system with proportional valve that allows cooling in any point of the machine, the mirrors cooling influences the focal length
contour las for manufacturing small contours
safety cabin
fume extraction
multi-beam safety barriers
Shopfloor programming ToPs 100 lite
control: open PC based control system, easy to use, on line help, diagnostic functions, 3.5″ floppy disk drive, bnc-/ rj45 connection
