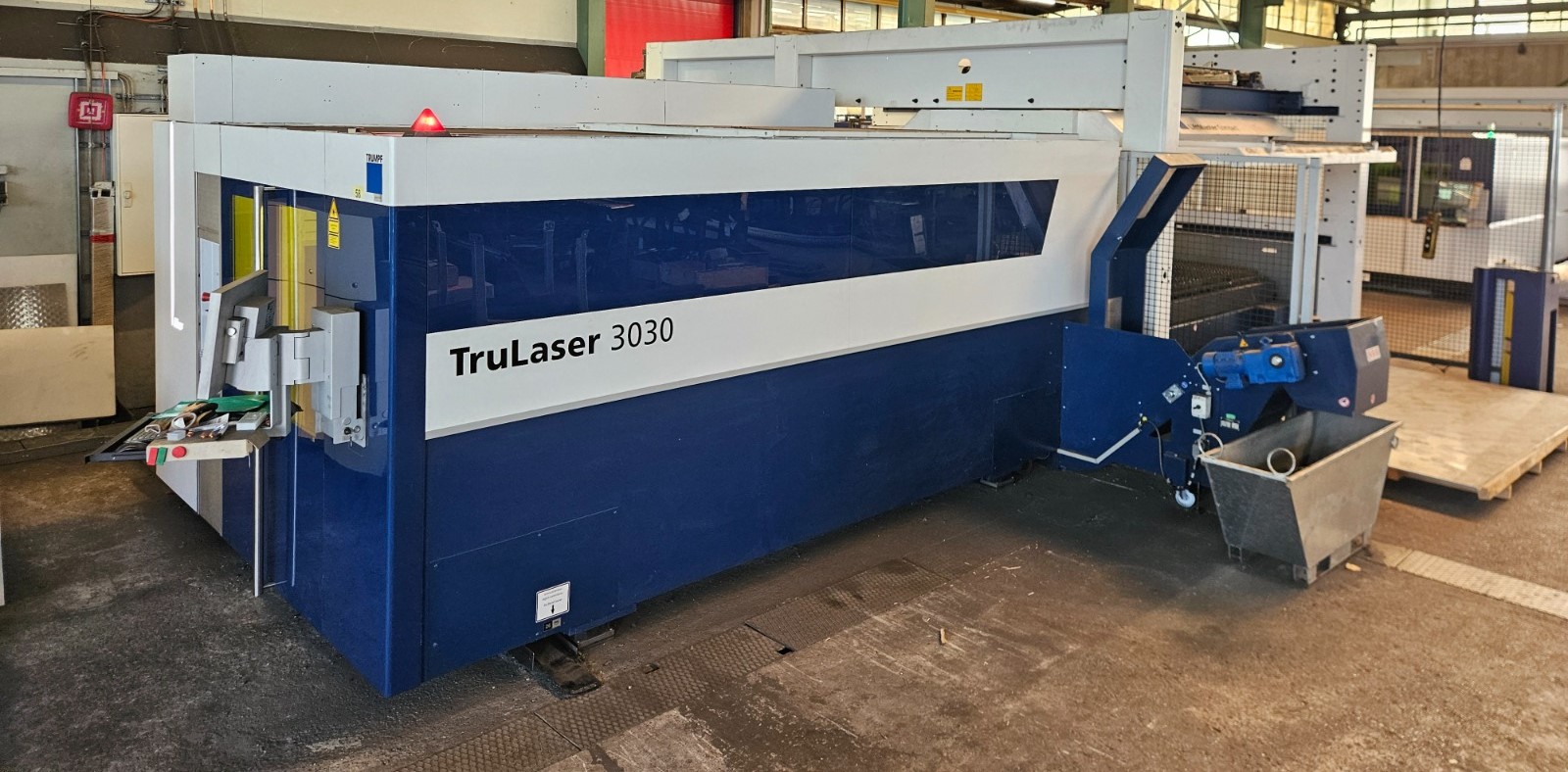

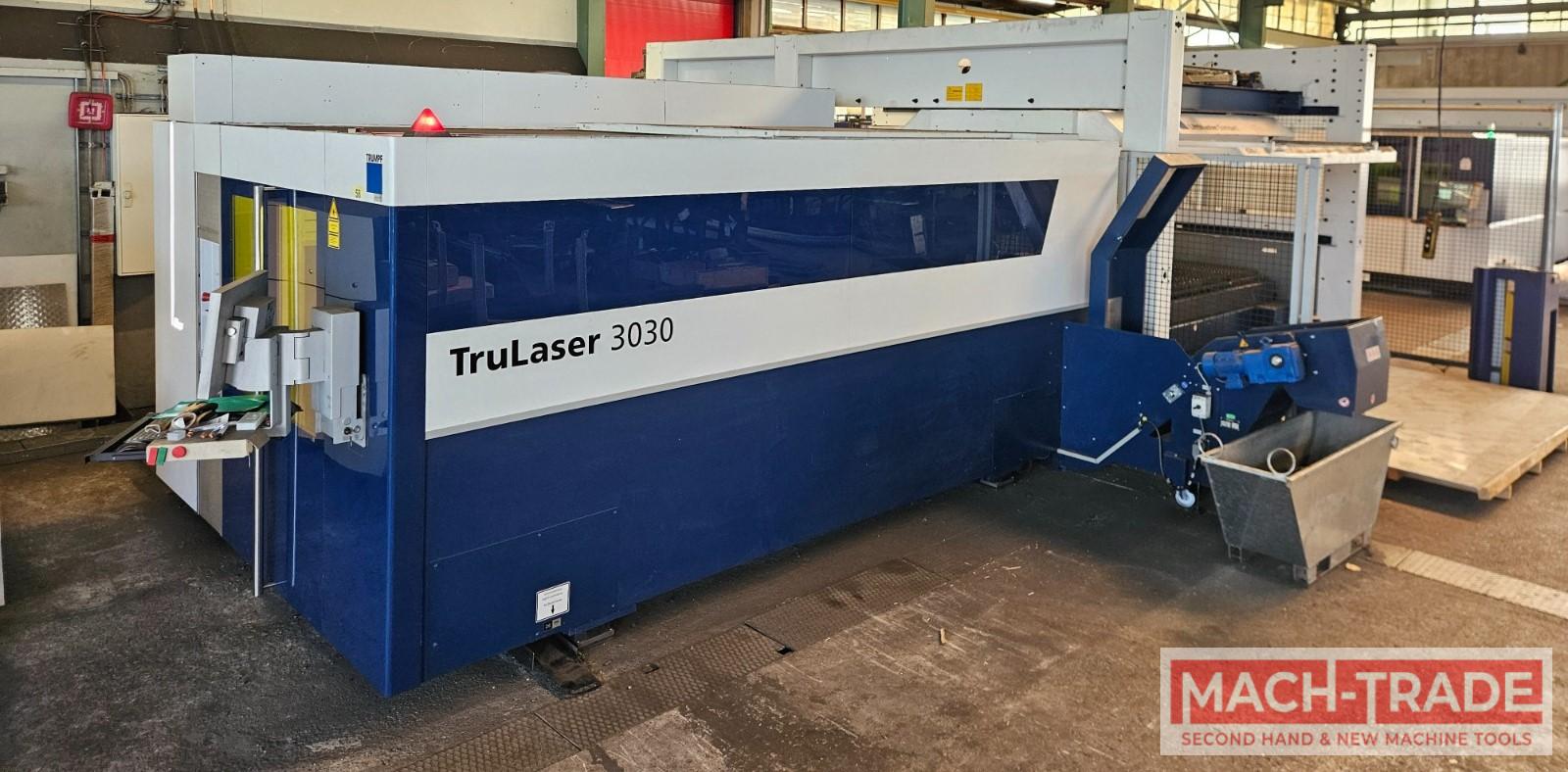

Trumpf TruLaser 3030 L49 fiber 6kW + Liftmaster Compact Year 2019

Available in MACH-TRADE

Trumpf TruLaser 3030 L49 fiber 6kW + Liftmaster Compact Year 2019

Machine hours: about 21.000 / 14.000 h

Standard Configuration

Machine
⦁ Closed machine frame
⦁ 17" Touch screen
⦁ Integrated cabinet
⦁ Motion unit for high precision processing
⦁ Torque drive in combination with direct linear drives
⦁ Chiller
⦁ Automatic pallet changer lengthwise installation
⦁ Enclosed beam delivery via laser light cable
⦁ Integrated electrical cabinets with inside light
⦁ Wide longitudinal conveyor
⦁ Ergonomic control panel with Touchscreen
⦁ Work area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning

TRUMPF laser
⦁ External solid state laser TruDisk 6001 with 1 fiber optic cable laser output
⦁ Stimulation via pump diodes
⦁ Laser power control

Cutting head
⦁ Universal cutting unit
⦁ One cutting head strategy
⦁ Protection glass to avoid lens contamination
⦁ Online protection glass monitoring
⦁ ControlLine

Control
⦁ Easy shop floor programming
⦁ Fast post production
⦁ Control Sinumerik 840D SL
⦁ 19" Touch panel
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi-sheet processing
⦁ Microweld
⦁ FastLine
⦁ AdjustLine
⦁ FlyLine
⦁ Interface remote support
⦁ Condition Guide

Data transmission
⦁ RJ45 network connection and a USB interface
⦁ Central Link

Safety
⦁ CE label
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Machine enclosure with certificated window (right door)
⦁ Push-up roof

Additional Equipment

Automation
– Liftmaster compact: base unit with synchronous loader,
peeling unit and sheet thickness measuring device, movable unloading rake,
incl. loading /unpacking station,
max. stack height 90mm for loading, max. stack height 250mm for unloading (right hand installation)

Additional equipement
– Separation of thin sheets (ab s=0,8mm)
– Loading station for extended stack height (max. 300mm / 3to)
– Cleaning brush for table grids
