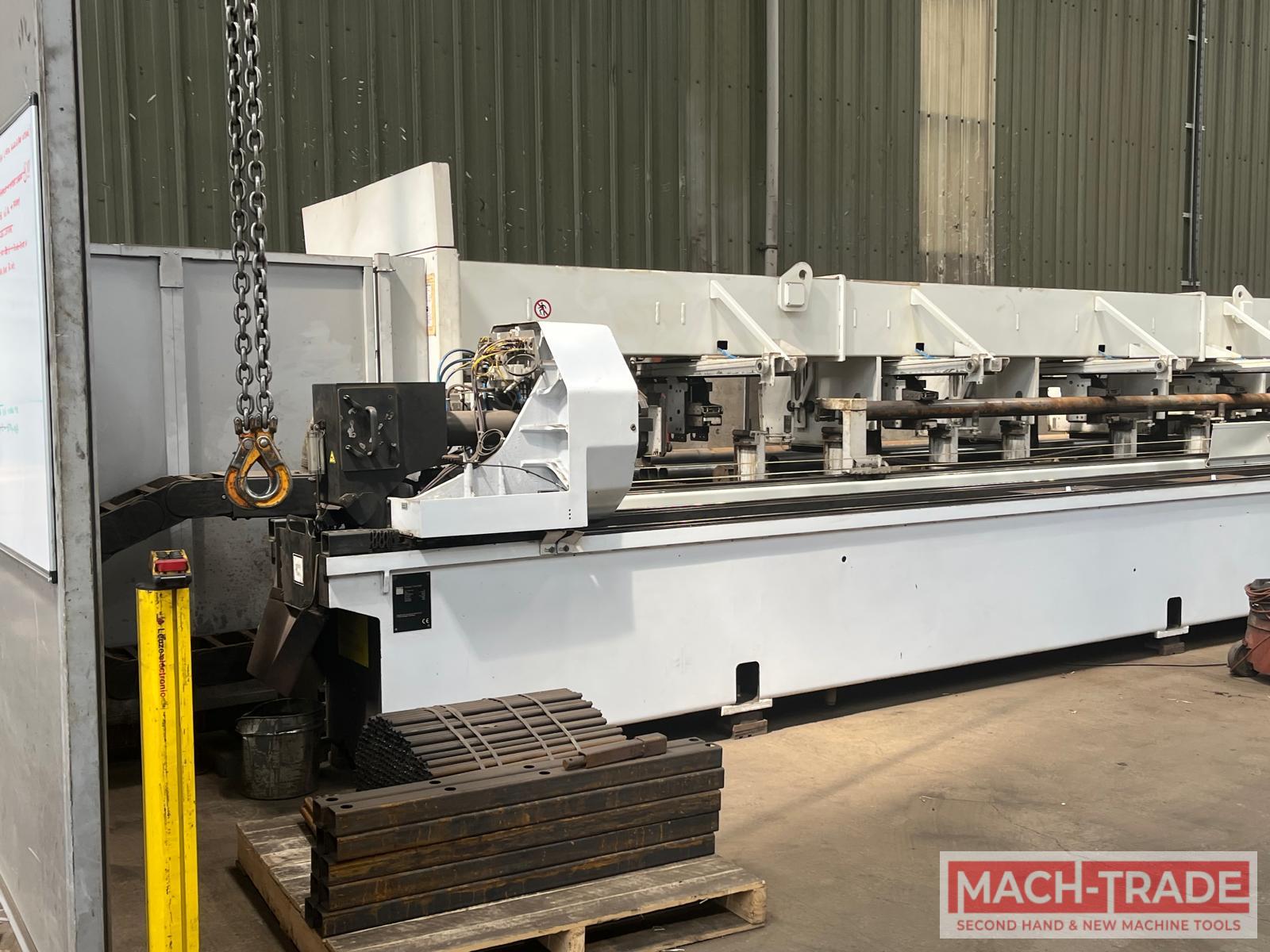

TruLaser Tube 5000 fiber (T06)

Available in MACH-TRADE SRL

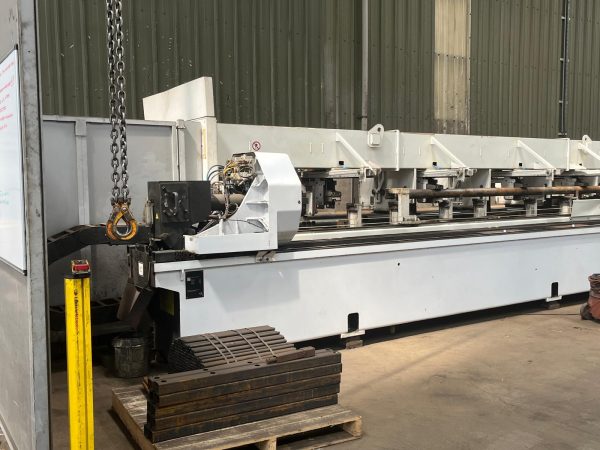

Laser cutting machine Trumpf TruLaser Tube 5000 fiber (T06) Watt 2000, year 2018

Manufacturer
TRUMPF
Type
TruLaser Tube 5000 fiber (T06)
Year
2018
Working area
6500 mm
Laser rated output
2000 Watt
Control
Siemens Sinumerik 840 D
Max. speed
170/120/60 m/min

Standard configuration

Machine
⦁ Machine bed for automated loading up to 6.5 m: Solid machine frame with highly accurate, hardened guides achieves high speeds as well as high accuracy
⦁ Feed station with self centering clamps
⦁ Automatic tube support for raw material
⦁ Feeder claws with self-centering parallel collet chuck
⦁ High-precision motors: Digital 3-phase servo motors with high precision of the drive axes
⦁ LoadMaster Tube 6.5 m with bundle magazine
⦁ Part removal station 3 m (incl. scrap conveyor with container)
⦁ Parts deposit
⦁ Enclosed beam delivery by laser light cable (LLK)
⦁ NitroLine: High pressure cutting for oxide and burr free edges in stainless steel and aluminum alloy
⦁ FocusLine: Program-controlled focus adjustment, dependent on type of material and thickness
⦁ Laser power control
⦁ Programmable cutting gas pressure
⦁ Automatic start and shutdown device
⦁ Ergonomic touch-screen and work area light

TRUMPF lasers
⦁ Solid-state laser TruDisk 2001 with 1 fiber optic cable laser output
⦁ Stimulation via pump diodes
⦁ Laser light cable according to standard layout
⦁ Laser log book function
⦁ Laser chiller unit (water-air)

Cutting head
⦁ Lens cutting head with 150 mm focal length
⦁ One cutting head strategy
⦁ ControlLine

Control
⦁ Sinumerik 840D
⦁ Simple operation
⦁ Online-help
⦁ Integrated technology data
⦁ Teleservice via internet

Data transfer
⦁ RJ45 network connection and USB-interface

Safety
⦁ CE label
⦁ Multi-beam light barriers
⦁ Surveillance system for, amongst others, gas pressure, temperature and cooling water
⦁ Compact dust extraction unit
⦁ Safety cabin with certificated safety glass

Accessories
⦁ Clamping jaws
⦁ Quick change form cups for round tubes up to d 152 mm
⦁ Quick change form cups for rectangular tubes (up to 85 mm outer circle diameters)
⦁ Quick change form cups for rectangular tubes (up to 170 mm outer circle diameters)
⦁ Guide rollers for round and rectangular tubes
