Punching machine Amada EMZ 3610 NT

Available in MACH-TRADE

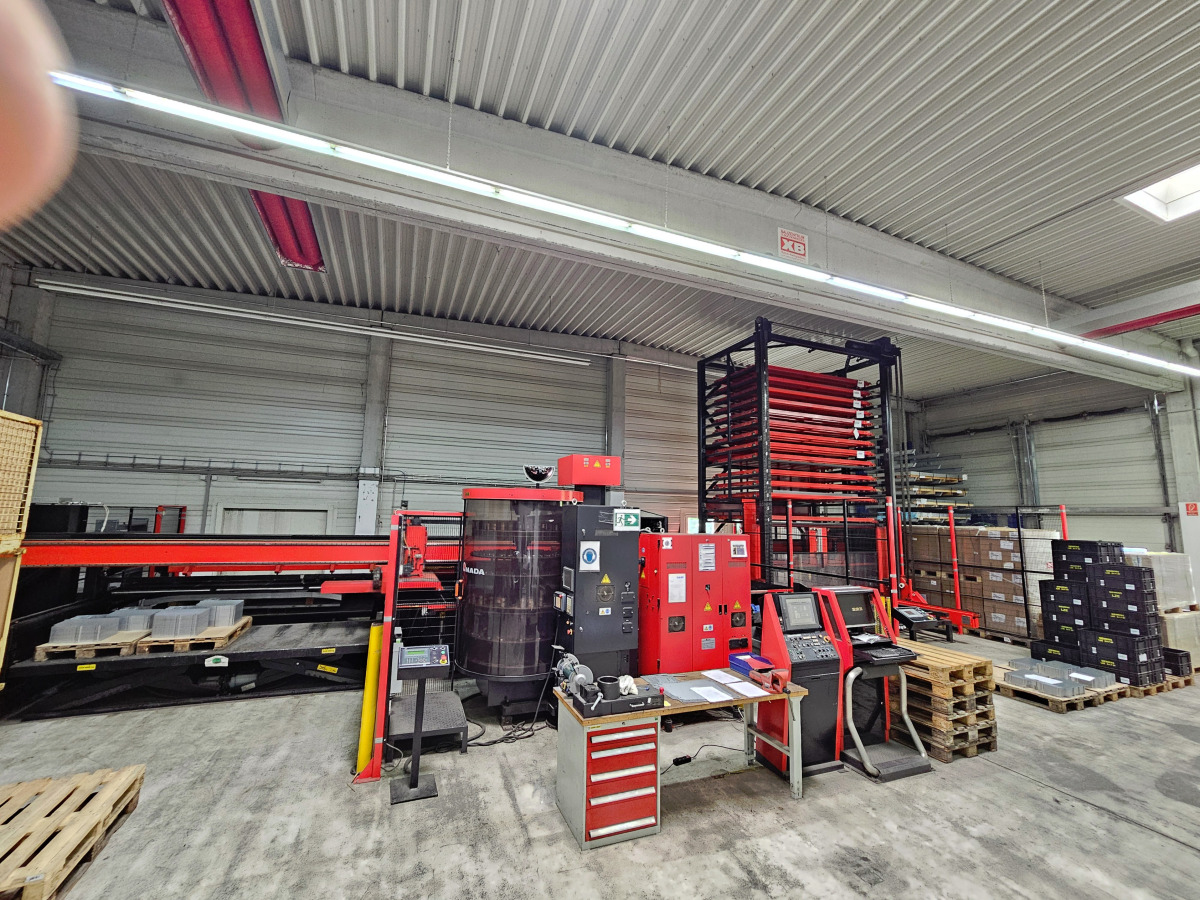

n. 1 used punching machine Amada EMZ 3610 NT + Tapping + PDC II + ASL 300 + PR UL III Year: 2007

Technical data:

Control: AMNC-F
Punching force: 300kN
Working area X/Y: 2500 x 1525 mm
With repositioning: 5000 x 1525 mm
Max. sheet thickness: 4,5 mm (mild steel)
Max. table loading weight: 160 kg
Feed rate X/Y: 100 / 80 m/min (128 m/min simultaneous)
Positioning tolerance: +/- 0,1 mm
Number of stations in Z-turret: 45 AutoIndex stations: 4 (2 x B, 2 x C)
Feed rate turret: 30 1/min
Max. number of hits: 1000/min
Machine frame: Bridge frame
Punching drive: servo-electric Twin Drive Drives turret + table: AC-Servo motors
Clamps: pneumatical
Electrical connection: 400V / 50Hz
Electrical consumption: 1kW – 7kW
Air consumption machine: 250 l/min
Air consumption Air Jet
Vakuum: 250 l/min Machine weight: 23 to
Tapping Unit: 8 stations Station 1: T411 (M8, lead 1,25) Station 2: T412 (M6, lead 1,0) Station 3: T413 (M5, lead 0,8) Station 4: T414 (M4, lead 0,7) Station 5: T415 (M3, lead 0,5) Station 6: T416 (M3, lead 0,5) Station 7: T417 (M2,5, lead 0,45) Station 8: T418 (M2,5, lead 0,45)
PDC II (tool changer): 220 stations, thereof: – 120 x A station – 80 x B station – 12 x C station – 8 x D/E station Tool changing time: 12 – 40 seconds per tool Static address system Weight: 5.000 kg At tool changing processpunches and dies can be changed parallel or only the dies can be changed. Up to 3 dies can be related to each punch.

Loading storage tower ASL 300: Sheet size min.: 1000 x 300 mm Sheet size max.: 3000 x 1500 mm Pallet changing time: 75 s Max. pallet weight: 3000 kg Number of pallets: 14 pieces Material thickness: 0,5 – 8,0 mm Max. feed rate loading traverse: 70 m/min Number of suction cups: 34 pieces Double sheet control: yes, with sheet thickness detector Air consumption: 600 l/min, 6 bar inlet pressure Electrical connection: 400V

Unloading unit Parts Remover PR III UL 300: Part size min. / max.: 150 x 150 mm / 2500 x 1000 mm Sheet thickness: 0,5 – 3,0 mm (4mm for EM-Serie) Max. part weight: 50kg Storage table size: 3400 x 1400 mm Min. part size for unloading clamps: 1600 x 300 mm Max. part size for unloading clamps: 3000 x 1500 mm Max. stack height skeleton table: 450mm Max. weight skeleton table: 2000kg Max. stack height storage table: 450mm Max. weight storage table: 4000kg Max. feed rate X- / Y-direction: 180 / 90 m/min Air consumption: 1000 l/min, 6 bar inlet pressure Electrical connection: 400V
