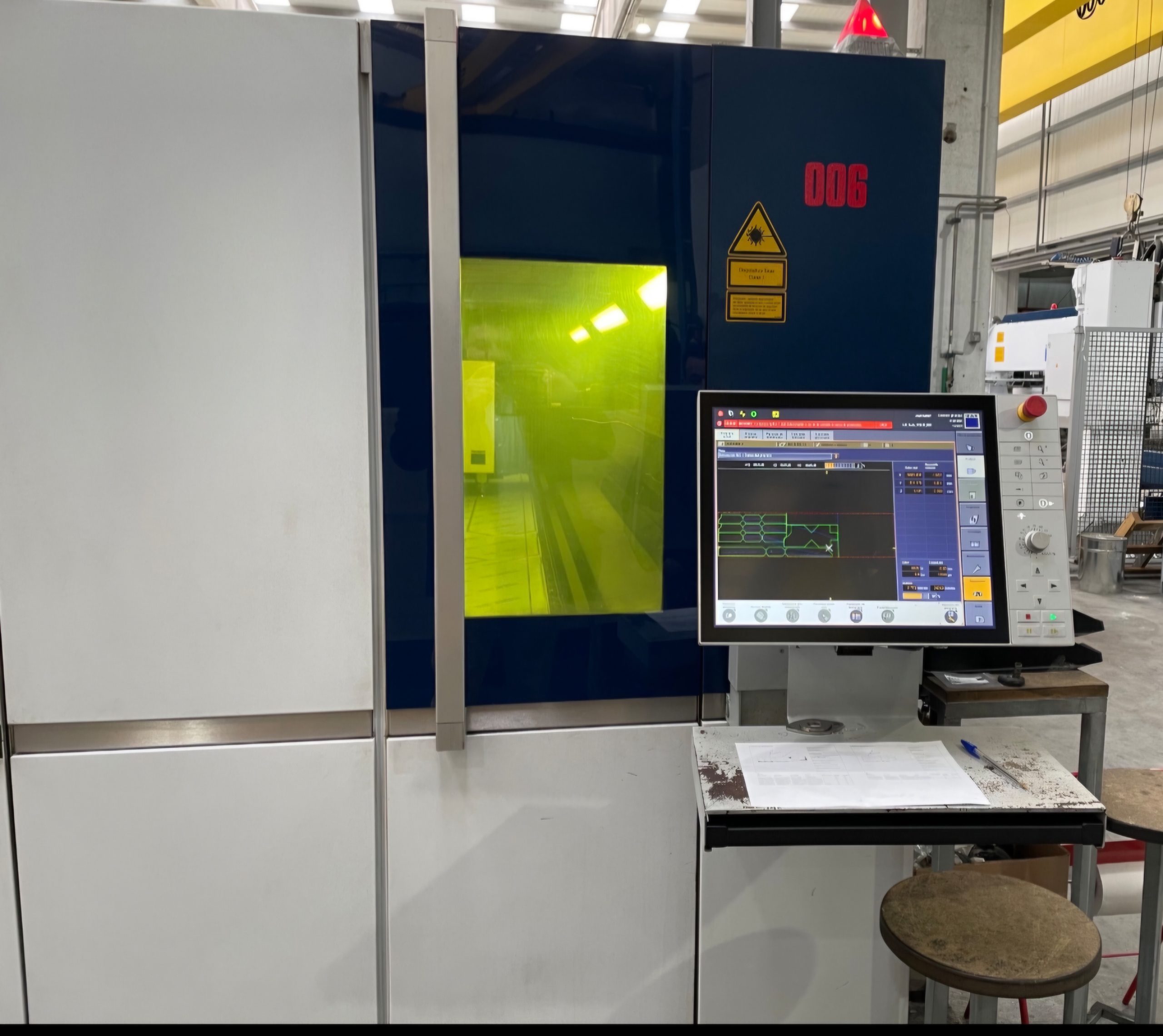

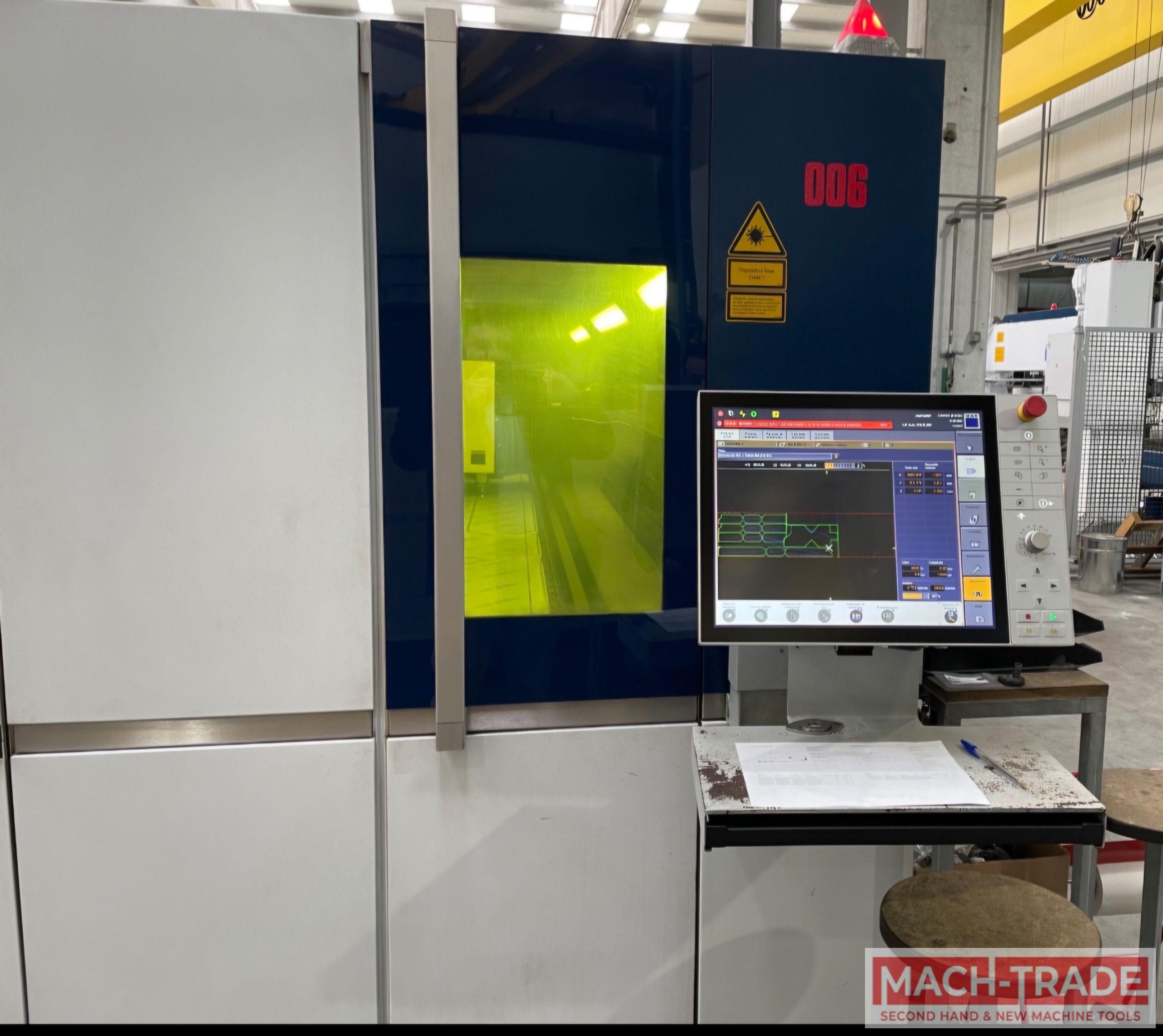

Laser cutting machine TRUMPF TruLaser3060 fiber (L66), 6000 Watt
Technical Sheet
Available in MACH-TRADE
N° 1 Laser cutting machine TRUMPF TruLaser3060 fiber (L66), 6000 Watt
Manufacturer: TRUMPF
Type: TruLaser 3060 fiber (L66)
Year: 2018
Working area: 6000 x 2500 x 115 mm
Laser rated output: 6000 Watt
Control: Siemens Sinumerik 840 D SL
Working hour*: 38.794/38.539/19.676 h
Max. Sheet thick./St: 25 mm
Max. Sheet thick./VA: 25 mm
Max. Sheet thick./AI: 25 mm
Max. Speed: 140 m/min
Positioning accuracy: 0,1 mm
Length:15450 mm; Width:6878 mm; Height:2200 mm; Weight:19800 kg (basic
machine);
Standard configuration
Machine
⦁ Working Range 6000 x 2500 mm
⦁ Closed machine frame
⦁ Integrated cabinet
⦁ Automatic pallet changer lengthwise installation
⦁ Gantry drive in combination with direct linear drives
⦁ Chiller for machine cooling
⦁ Integrated cabinets
⦁ Wide longitudinal conveyor
⦁ Work area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning
TRUMPF Laser
⦁ External Solid-state laser TruDisk 3001 with 1 fiber optic cable laser output
⦁ Stimulation via pump diodes
⦁ Laser power control
Cutting head
⦁ Universal cutting unit
⦁ One cutting head strategy
⦁ Protection glass to avoid lens contamination
Control
⦁ Sinumerik 840D SL
⦁ ControlLine
⦁ Easy shop floor programming
⦁ Fast post production
⦁ 19″ Touch panel
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi-sheet processing
⦁ Microweld
⦁ FastLine
⦁ AdjustLine
⦁ FlyLine
⦁ Condition Guide
Data transmission
⦁ RJ45 network connection and a USB interface
⦁ Central Link
Safety
⦁ CE label
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Compact dust extractor
⦁ Machine enclosure with certificated window (right door)
Additional equipment
Transfer
⦁ External Solid-state laser TruDisk 6001 with 1 laser output (includes BrightLine fiber and Performance
package fusion cut)
⦁ Nozzle changer
⦁ Copper cutting package (cutting data for O2 and N2)
⦁ Brass cutting package (cutting data for N2)
⦁ CoolLine
⦁ Smart Collision Prevention (requires TruTops Laser or TruTops Boost)
