BLM Adige LT8.10 4kW fiber Year 2018 laser tube cutting machine

Available in MACH-TRADE

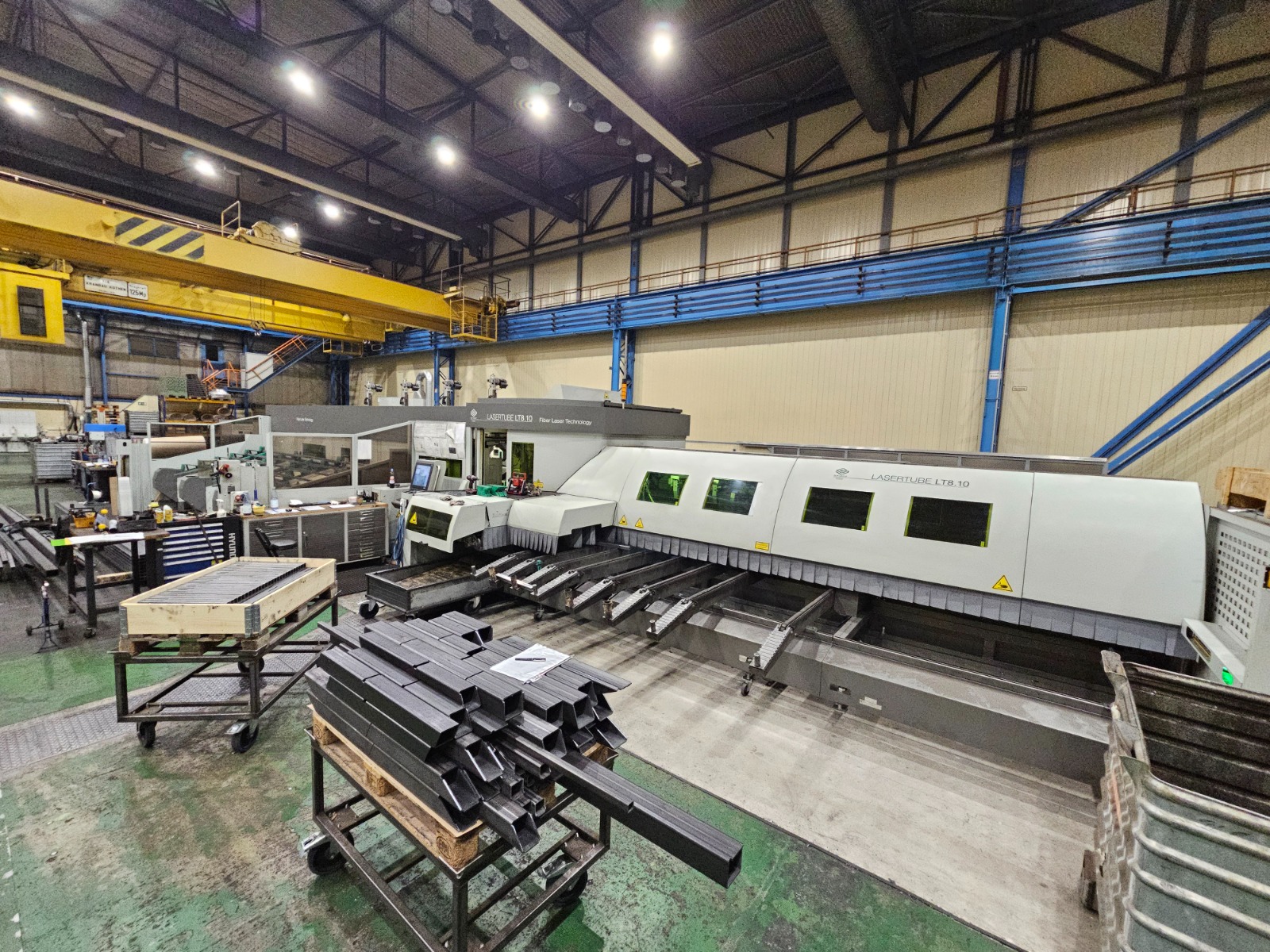

n. 1 used laser tube cutting  machine BLM Adige LT8.10 4kW fiber Year 2018

Machine hours: about 24.000 h

Cutting characteristics:
– Round, depending on loader:
– 12 to 220 mm diameter
– Square 12 to 200 mm side
– rightangled and flat oval in einem 280 mm envelope circle
– 2500 mm minimal legth and 6500 mm maximum length for raw tubes
– 40 kg/m max weight.

The machine is for processing of following open profiles:
– Flat material: 40 x 5 mm to 200 x 12 mm;
– C- and U-profiles: 30 x 20 mm to 200 x 200 mm;
– L-profiles: same as C- and U-profiles
– Guiding bezel wagon
– Support arms for tube
– Metal belt conveyor for backside unloading (rest pieces up to 450 mm length)
– automatic control + correction of torsion and centering of right angled tubes.
– Cutting gas supply system with proportional valve.
– Air conditioned electric cabinet
– Automatic cutting optimizing
– Operator interface with text and pictures and help function.
– Active Marking function to marking of each part (Artube SW necessary)
– Automatic reduction of off-time.
– Automatic optimizing of relationship cutting quality/cycle time
– Complete database of technological processing parameter for each tube type

– NC comtrol:
– Siemens 840D SL with NC axis, with motors + digital drives.
– NCU 730.2, program memory 3 MB

– Operator interface:
– Intel Core i7-610E 2,53 GHz Prozessor, 4 GB RAM, 50 GB SSD
– 19“ Touch colour screen, USB interface
– Ethernet network card for fast data transfer (up to1000 Mbit/s)
– Remote diagnosis package for VPN internet connection

– Safety devices
– Ce sign Suitable for material out of steel, alloyed steel and stainless steel, copper and brass,as well as aluminium alloy
ADIGE TubeCutter 3D focus head with rotatable axis with +45° – -45° bevelling
Pressure of assist gases up to 25 bar.
Wiring of electric, gases and hydraulic inside the head Fast exchange system of protective window with removable cassette.
Active Focus device
Active Speed mode, with automatic adjustment of parameter
Automatic bundle loader for round, square, right angled and flat oval tubes.
Loadable min. length 2500 mm and max. length 6500 mm.
Max. weight 4000 kg. 2 possible loading procedure, out of bundle Bündel or out of loading trough
Light barriers for monitoring of max. height of loaded materials.
Separation device with tube guidance Sensors for determination of length of loaded tubes
With own cabinet, release buttons, fixed safety devices.
Push-off device for tubes stored in rectangular packages, on the bundle loader.
Automatic step conveyor for profiles
Loadable min. length 2500 mm and max. length 6500 mm.
Separation device with profile guidance Sensors for determination of length of loaded profiles Execution on machine front side
Loading portal main module Machine module for unloading, aligning, measuring and transport of rod from loader to cutting line
6500 mm loading portal extension module with 4 transport arms 2500 mm min. length and 6500 mm max. length of rods
Main module suppot unloader L=4500 mm.
Automatic sorting out of cutted parts Active tube support during rotation
Tiltable support table with rollers for discharge Controlled self centering unloading gripper
Sorting of parts in front of machineup to 4500/3400 mm and backsideup to 3400 mm
Unloader support extebsion module for sorting of parts on front side up to 6500 / 5400 mm and on back side up to 3400 mm In-line discharge system
Discharge system on front side, containing of metal belt conveyor and discharge table with motor driven chains 2000 mm discharge system extension module
Discharge table Main module with 3400 mm length
Table for reception of cutted parts, with horizontal motor driven and with rubber covered conveyor chains.
Collection area with 500 mm buffer way and max. level monitoring.
Tiltable holder at end of buffer way, for unloading of parts into a box 6 conveyor chains with adjustable distance Min. part length 300 mm.
Frame installed on rollers
Execution discharge table on machine back side

Fiber laser source IPG – YLS 4000.
Power: 4000 W.
Wave length: 1.07 μm.
Fiber diameter: 100 μm.
Impulse frequency: 0-3 kHz.
mpulse generator and control panel
Chiller unit with closed circuit and connection attachment for IPG
– YLS Extraction system [D] 2.000 m³/h extraction performance
Optical device for recognition and alignment of seam line Active Piercing
– Device for optimized laser piercing Specific sequence for profile centering Active Scan device for measuring and fault balancing of profile deflection and torsion.
2 network cameras for easy video monitoring of machine at main operator panel
Bezel clamping jaws (4 pieces) with double rolls
