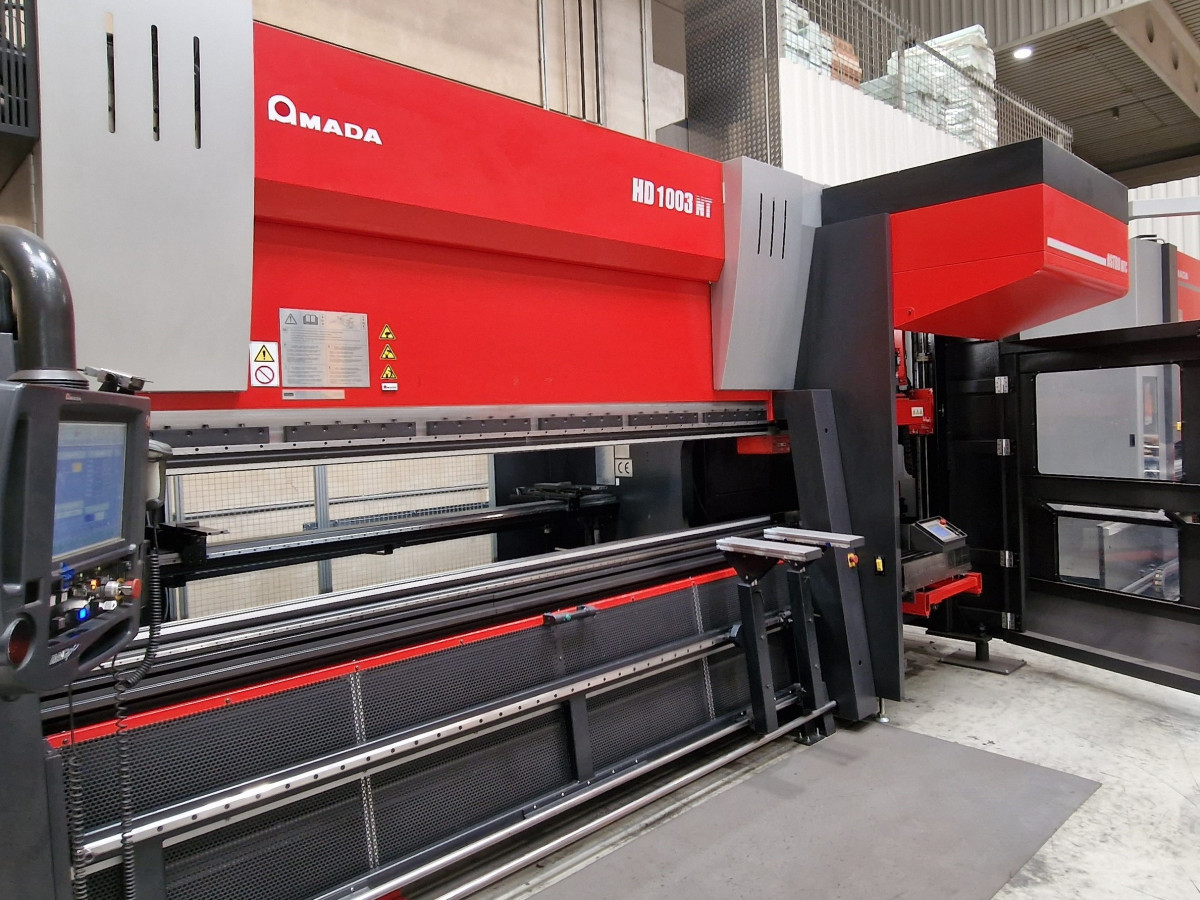

Amada HD 1003 + ATC press brake

Available in MACH-TRADE

n. 1 press brake machine Amada HD 1003 + ATC Year 2014

Machine hours: about 25.000 h

Description
Press force 1700 kN
Bending length 3000 mm
Servo-hydraulic drive
Patented compensation system
Control AMADA AMNC-NT
Back gauge system with 5 cnc controlled axis
Hinteranschlag mit Delta X-Funktion Motor-operated foot pedal
Safety device type AKAS III
Angle measuring system DigiPro, wireless Barcode reader Network connection prepared
Technical Data Machine
Maximum press force 1000 kN
Minimum adjustable press force 40 kN
Length of beam 3110 mm
Distance between frames 2700 mm
Throat depth 450 mm
Stroke 200 mm
Installation height 596 mm
Beam width 60 mm
Working height 950 mm
Approach speed 1-120 mm/s
Folding speed 1-10 mm/s
Return speed 1-120 mm/s
Automatic tool changer (AutoToolChanger ATC)
The system’s four-axis manipulator precisely selects and places punches and dies from the tool magazine.
Locating and loading the appropriate tooling is performed quickly and efficiently.
In combination with the ATC the hydraulic clamping provides the safe mounting of the tools. 15 stores for punches 18 stores for dies Tool length eachs 800 mm System Amada-AMTS for punches and dies
Safety door
– Protection from moving parts during the setup process
– Convenient handling
– Closed during the setup process
Measurement and Anschlussdaten
Power requirement 400 V / 22 kVA / 50 A
Total length 5980 mm
Total width 3075 mm
Total height 2915 mm
Machine weight 11.000 kg
