Punching machine Trumpf TruPunch 5000-FMC

Available in MACH-TRADE

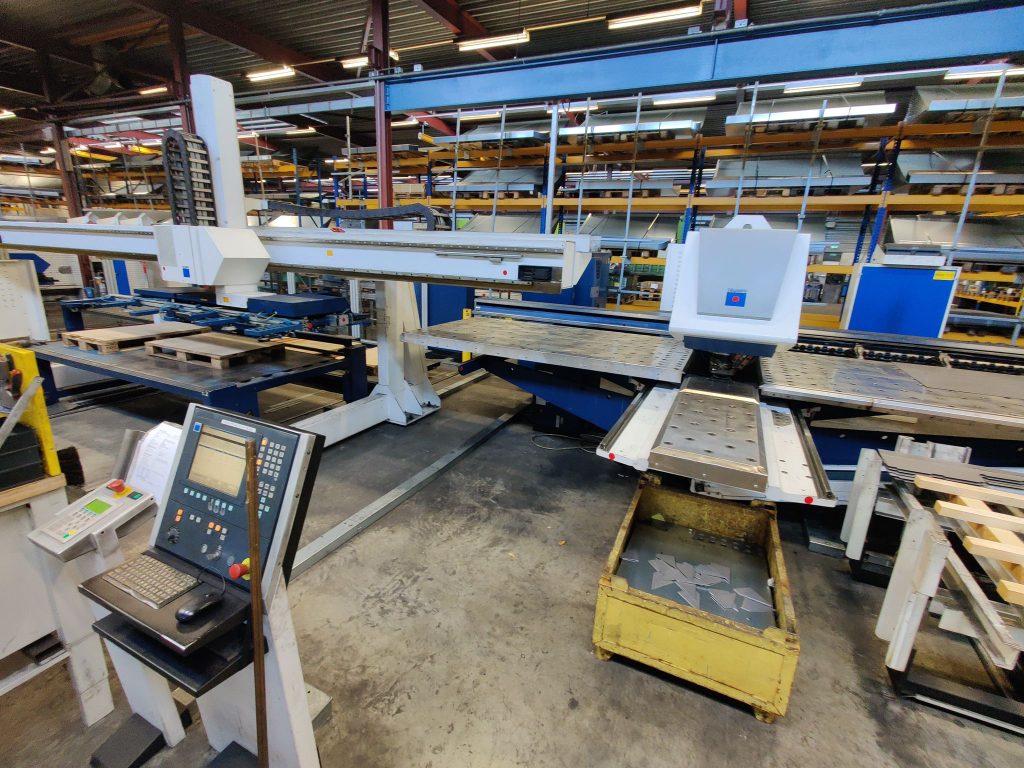

n. 1 used punching machine Trumpf TruPunch 5000-1600 FMC with loading unloading system SheetMaster Year 2010

Technical data:

  • Year: 2010
  • X axis movement: mm 3085
  • Y axis movement: mm 1650
  • Punching force: 22 t
  • Max X axis positioning Speed: m/min 100
  • Max Y axis positioning speed: m/min 60
  • Max simultaneous speed: m/min 116
  • Automatic tool changer: stk 21
  • Numerical control: Siemens Sinumerik 840D
  • Max. sheet thickness: mm 8
  • Piece weight: Kg 230 max
  • Tool diameter: mm 76,2
  • Weight: Kg 17300
  • Color: White Blue

Dimension

  • Length: 7600 mm
  • Width: 7000 mm
  • Height: 2500 mm

Standard configuration

Machine

  • Stable C-frame for easy access
  • Coordinate guide for high-precision machining
  • Linear magazine with 21 tool stations incl. 4 clamps
  • Drives with maintenance free 3-phase servo motors
  • Repositioning unit with programmable stripper
  • Ball-fitted tables
  • Parts chute 500 x 500 mm
  • Good parts container
  • Chip container
  • Automatic shutdown mechanism

Punching station

  • Electro-hydraulic punching
  • Rotatable single tool adapter
  • Manual adjustable presser foot force
  • Programmable presser foot
  • Tool length compensation
  • Spray lubrication for punches
  •  Vacuum slug removal
  •  Forming
  •  Sheet collision detection

Control

  •  Open controller based on Siemens Sinumerik 840D
  •  Control panel with 12,0“ TFT screen
  • NC program management
  • Integrated technology data
  • Diagnostic function

Programming

  •  Shop floor programming in machine vicinity
  •  Simplified programming

Data transmission

  • USB interface and network connection
  • USB interface and network connection per Teleservice

Safety

  •  CE marking
  •  Multi-beam light barriers
  •  Rapid hydraulic shutdown

Additional equipment

  •  Function Multitool
  •  Function MultiShear
  •  Function Tapping
  •  Function deburring and roller technology
  •  Pneumatic repositioning cylinders
  •  Sensor for parts chute
  •  Installation on air cushions
  •  Chip conveyor with tilt container
  • Ball tables with brush inserts
  • Blow-out device

Automation

Sheetmaster

  •  Standard configuration: Multi-functional sheet handling system for automated pro-cessing of sheet formats up to 3000 x 1500 mm

Options SheetMaster

  •  Suction plate module
  •  Peeling System

GripMaster

  •  Standard configuration: Automation component for removing scrap skeletons 3000 x 1500 mm.
  •  Removal of scrap skeletons and remainder strips with the GripMaster
  •  Automatic stacking of scrap skeletons in specified position on a scissors table (400 mm)
  •  Process monitoring through sensors in the skeleton grippers
  • To facilitate unloading, the scrap skeleton pallet 3000 x 1500 mm can be tilted



Cart system (3000 x 1500 mm)

  • Duplex cart loading/unloading (two duplex carts)
  • First store interface
